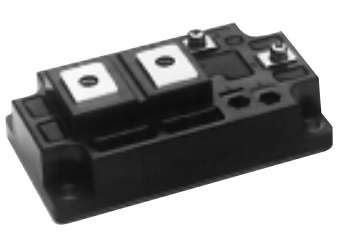

CM600HN-5F Mitsubishi - IGBT Module

CM600HN-5F Description

Mitsubishi Electric makes the CM600HN-5F, a 250 V, 600 A IGBT module. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the CM600HN-5F; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Target Applications

Mitsubishi CM600HN-5F is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Powerex (Mitsubishi)
Configuration	Single IGBT module
VCES	250 V
IC	600 A (TC = 25 °C)
Collector power dissipation	1780 W
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M6: 1.96 - 2.94 N·m; M4: 0.98 - 1.47 N·m
Mounting torque	M6: 1.96 - 2.94 N·m
Weight	400 g
