CM600HU-24HMitsubishi - IGBT Module

CM600HU-24H Description

The Mitsubishi Electric CM600HU-24H is an IGBT module rated at 1200 V and 600 A, available from USComponent. High Power Switching Use Insulated Type IGBT Module. Components of this type are commonly used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM600HU-24H.

Summary of Features

CM600HU-24H is a 1200V 600A IGBT Module.

Target Applications

Mitsubishi CM600HU-24H is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Single - one IGBT with free-wheel diode
Series	H-Series
VCES	1200 V
IC	600 A (TC = 25 °C)
ICM (peak)	1200 A
VCE(sat) typ.	2.9 V @ 600 A
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M8: 8.8 - 10.8 N·m; M4: 1.3 - 1.7 N·m
Mounting torque	M6: 3.5 - 4.5 N·m
Weight	600 g
Junction temperature	-40 to +150 °C

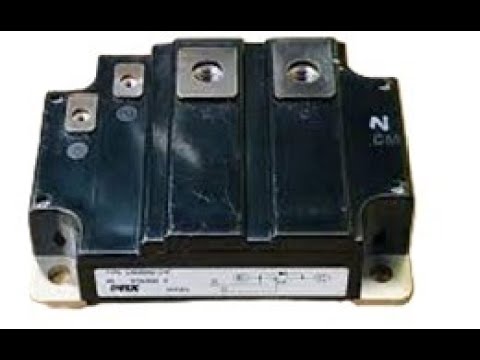

CM600HU-24H Video

Download CM600HU-24H Datasheet

CM600HU-24H PDF Datasheet
