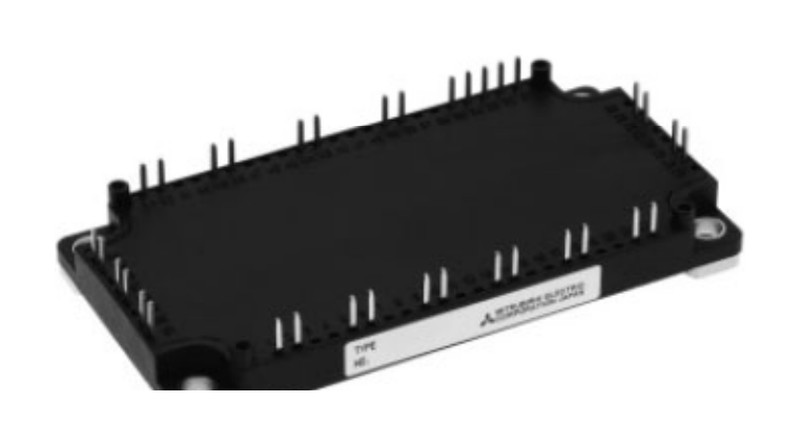

CM35MX-24A Mitsubishi - IGBT Module

CM35MX-24A Description

CM35MX-24A is a 1,200 V / 35 A CIB (converter-inverter-brake) IGBT module from Mitsubishi Electric, A series. Datasheet ratings: 35 A DC at TC = 105 °C, VCE(sat) 2.0 V typ. at 35 A, 2,500 V RMS isolation. Typical applications: General purpose Inverters, Servo Amplifiers. It is discontinued by Mitsubishi; USComponent still sources it.

USComponent supplies CM35MX-24A and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM35MX-24A is used for General purpose Inverters and Servo Amplifiers.

Key Specifications

CM35MX-24A is a 1,200 V / 35 A CIB (converter-inverter-brake) IGBT module from Mitsubishi Electric, A series. Source: Mitsubishi Electric datasheet (Oct. 2011).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	A series
Configuration	CIB (converter + inverter + brake chopper)
Collector-emitter voltage (VCES, inverter part)	1,200 V
Collector current (IC, DC, TC = 105 °C, inverter part)	35 A
Repetitive peak collector current (ICRM, pulse, inverter part)	70 A
Total power dissipation (Ptot, TC = 25 °C, inverter part)	295 W
VCE(sat), IC = 35 A, VGE = 15 V, Tj = 25 °C, inverter part	2.0 V typ. / 2.6 V max.
Gate-emitter threshold voltage VGE(th), inverter part	6 / 7 / 8 V (min. / typ. / max.)
Isolation voltage (Visol, AC 1 min)	2,500 V RMS
Junction temperature (Tj)	-40 to +150 °C
Mounting torque (to heat sink)	M5 screw: 2.5 - 3.5 N·m
Mass (typ.)	270 g
Supply status (Mitsubishi)	Discontinued by Mitsubishi
Applications (datasheet)	General purpose Inverters, Servo Amplifiers
Datasheet	Available on this page (PDF)
