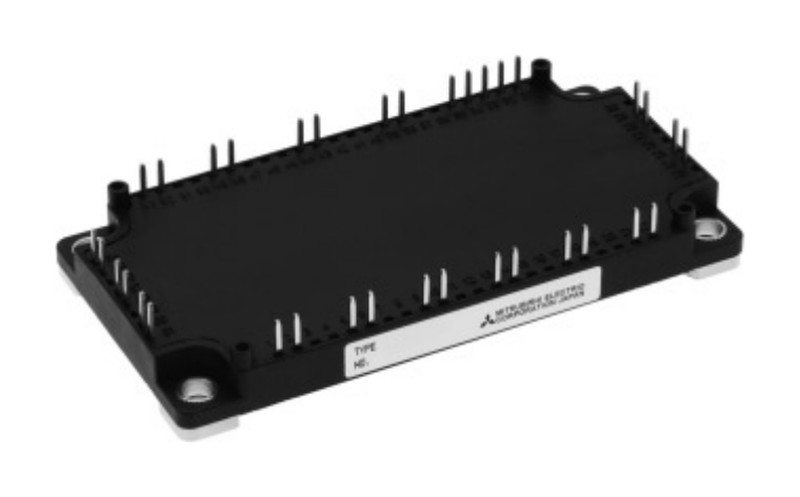

CM100MX-12A Mitsubishi - IGBT Module

CM100MX-12A Description

CM100MX-12A is a 600 V / 100 A CIB (converter-inverter-brake) IGBT module from Mitsubishi Electric, A series. Datasheet ratings: 100 A DC at TC = 75 °C, VCE(sat) 1.7 V typ. at 100 A, brake 600 V / 50 A, converter 800 V / 100 A, 2,500 V RMS isolation. Typical applications: General purpose Inverters, Servo Amplifiers. It is discontinued by Mitsubishi; USComponent still sources it.

USComponent supplies CM100MX-12A and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM100MX-12A is used for General purpose Inverters and Servo Amplifiers.

Key Specifications

CM100MX-12A is a 600 V / 100 A CIB (converter-inverter-brake) IGBT module from Mitsubishi Electric, A series. Source: Mitsubishi Electric datasheet (Jan. 2009).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	A series
Configuration	CIB (3-phase converter + 3-phase inverter + brake)
Collector-emitter voltage (VCES, inverter part)	600 V
Collector current (IC, DC, TC = 75 °C, inverter part)	100 A
Repetitive peak collector current (ICRM, pulse, inverter part)	200 A
Maximum collector dissipation (PC, TC = 25 °C, inverter part)	400 W
VCE(sat), IC = 100 A, VGE = 15 V, Tj = 25 °C, inverter part	1.7 V typ. / 2.1 V max.
Gate-emitter threshold voltage VGE(th), inverter part	5 / 6 / 7 V (min. / typ. / max.)
Brake part	600 V / 50 A (IC, DC, TC = 97 °C)
Converter part	VRRM 800 V, DC output current IO 100 A (TC = 137 °C), IFSM 1,000 A
Recommended AC input voltage (converter)	220 Vrms
Isolation voltage (Viso, AC 1 min)	2,500 V RMS
Junction temperature (Tj)	-40 to +150 °C
Storage temperature (Tstg)	-40 to +125 °C
Mounting torque (to heat sink)	M5 screw: 2.5 - 3.5 N·m
Mass (typ.)	270 g
Supply status (Mitsubishi)	Discontinued by Mitsubishi
Applications (datasheet)	General purpose Inverters, Servo Amplifiers
Datasheet	Available on this page (PDF)
