CM30MD-12H Mitsubishi - IGBT Module

CM30MD-12H Description

Mitsubishi Electric CM30MD-12H is an IGBT module rated at 600 V and 30 A. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

Looking for a replacement CM30MD-12H? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Mitsubishi CM30MD-12H is used for AC & DC motor controls, General purpose inverters, Servo drives, NC, Robotics.

Key Specifications

CM30MD-12H is a 600 V, 30 A IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	30 A

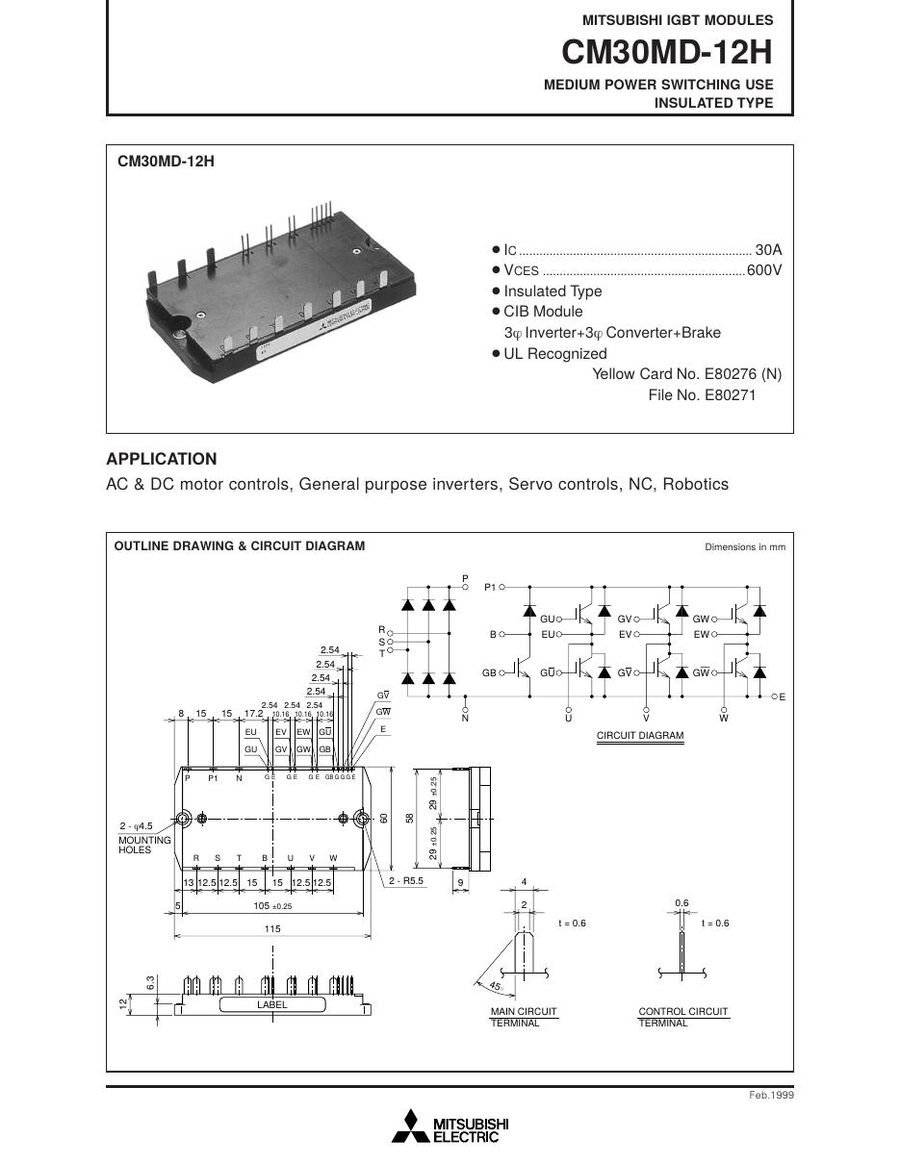

Datasheet	Available on this page (PDF)

CM30MD-12H Video

Technical document (PDF)  |  Request a quote for CM30MD-12H (reply within 24 hours)
