CM75DY-34A Mitsubishi - IGBT Module

CM75DY-34A Description

Mitsubishi Electric makes the CM75DY-34A, an IGBT module. It is built with two switches in a half-bridge (2-in-1) arrangement. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the CM75DY-34A, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Mitsubishi CM75DY-34A is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM75DY-34A is a 1,700 V, 75 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC)	75 A

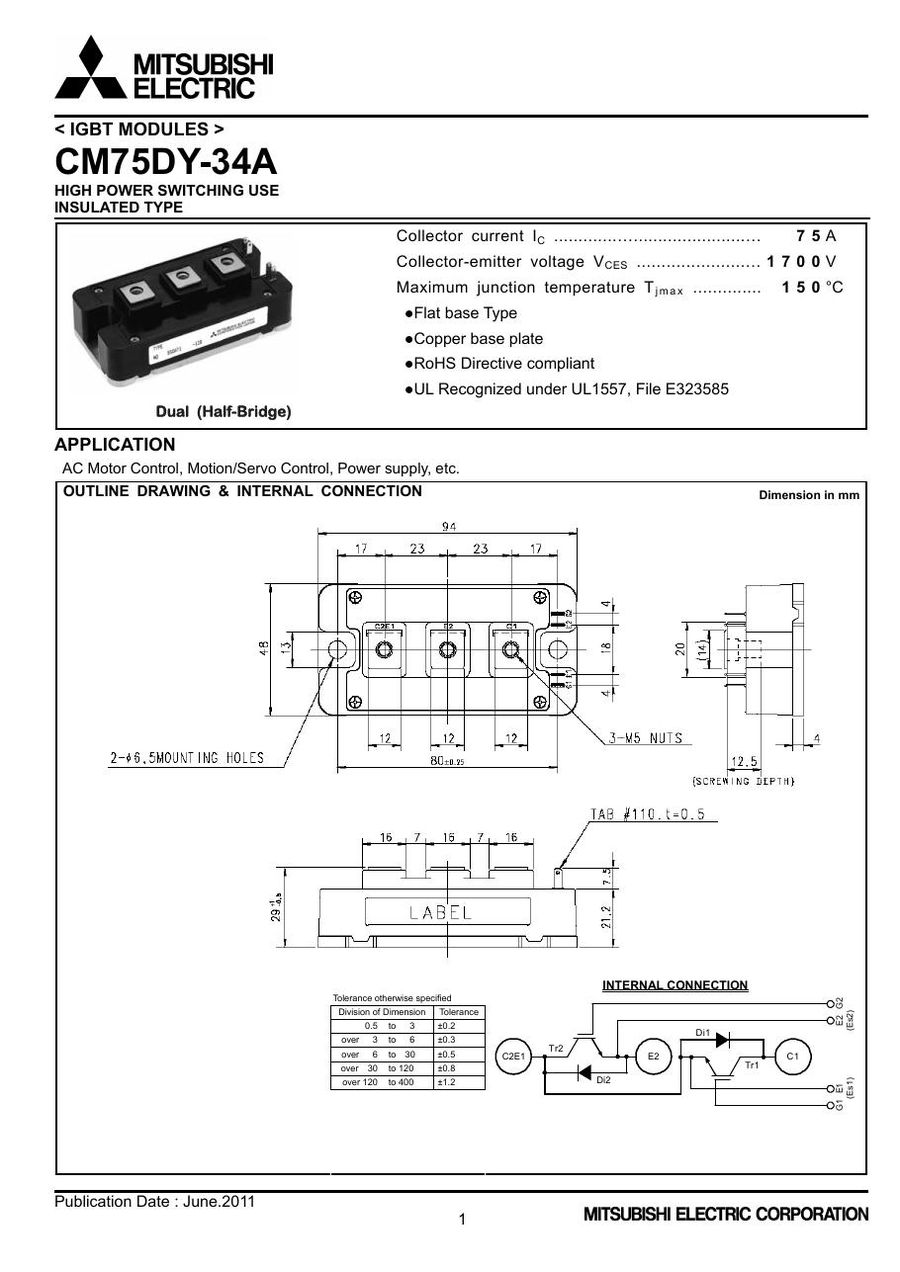

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM75DY-34A (reply within 24 hours)
