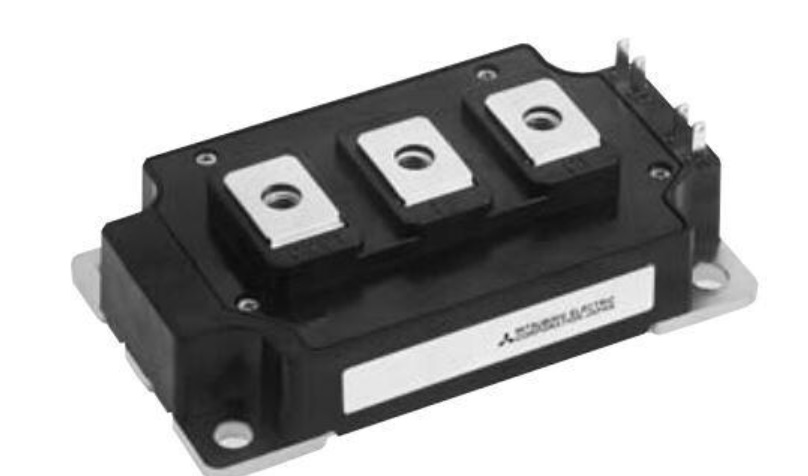

CM200DY-24NFMitsubishi - IGBT Module

CM200DY-24NF Description

Mitsubishi Electric CM200DY-24NF is an IGBT module rated at 1200 V and 200 A. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM200DY-24NF.

Target Applications

Mitsubishi CM200DY-24NF is used for AC Motor Control, UPS and Battery Powered Supplies.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Dual - two IGBTs in half-bridge configuration with free-wheel diodes
Series	NF-Series
VCES	1200 V
IC	200 A (DC, TC' = 112 °C)
ICM (peak)	400 A
VCE(sat) typ.	1.8 V @ 200 A
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M6: 3.5 - 4.5 N·m
Mounting torque	M6: 3.5 - 4.5 N·m
Weight	400 g
Junction temperature	-40 to +150 °C
