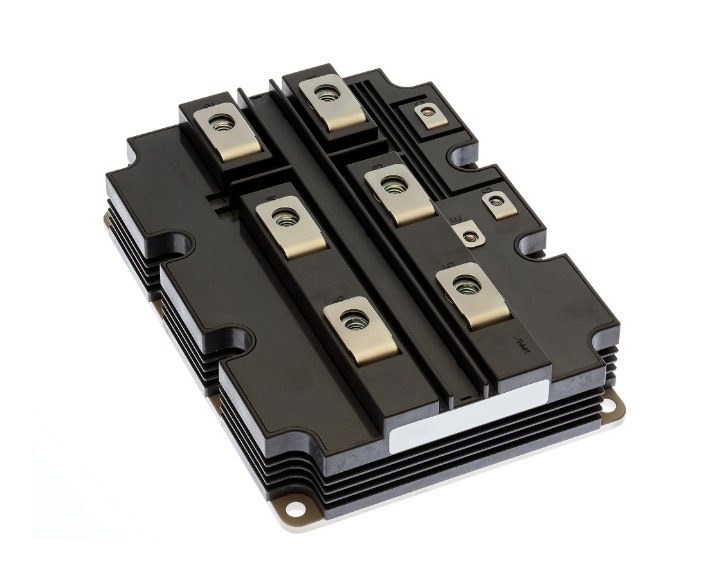

CM1800HG-66X Mitsubishi - IGBT Module

CM1800HG-66X Description

CM1800HG-66X is a 3300 V / 1800 A single HVIGBT module from Mitsubishi Electric (140 x 190 IHM package). Typical applications: traction drives, High Reliability Converters / Inverters, DC choppers.

USComponent supplies CM1800HG-66X and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM1800HG-66X is used for Traction drives, High Reliability Converters / Inverters, DC choppers.

Key Specifications

CM1800HG-66X is a 3300 V / 1800 A single HVIGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	HVIGBT module
Series	X series
Configuration	Single
Collector-emitter voltage (VCES)	3300 V
Collector current (IC)	1800 A
Isolation voltage (Viso)	10,200 V RMS
Package	140 x 190 IHM
Package size	140 x 190 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM1800HG-66X (reply within 24 hours)
