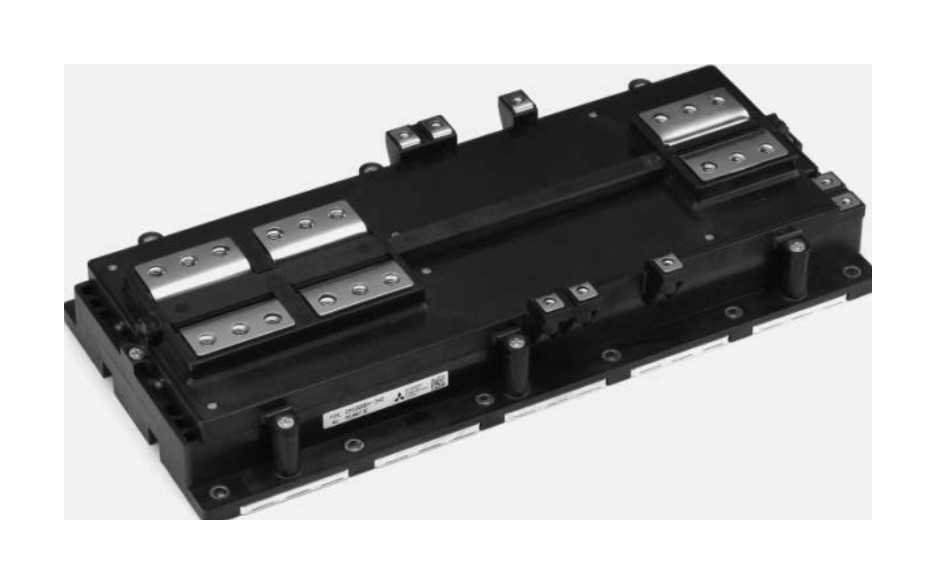

CM1800DY-34S Mitsubishi - IGBT Module
CM1800DY-34S Description
CM1800DY-34S is a 1,700 V / 1,800 A dual (half-bridge) IGBT module from Mitsubishi Electric, S series (6th generation IGBT). Datasheet ratings: 1,800 A DC at TC = 105 °C, VCE(sat) 2.20 V typ. at 1,800 A, 4,000 V RMS isolation. Typical applications: Wind power, Photovoltaic (Solar) power, AC Motor Control, Motion/Servo Control, Power supply. It is discontinued by Mitsubishi; USComponent still sources it.
USComponent supplies CM1800DY-34S and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
CM1800DY-34S is a 1,700 V / 1,800 A dual (half-bridge) IGBT module from Mitsubishi Electric.
- 1,700 V / 1,800 A dual (half-bridge) IGBT module
- S series (6th generation IGBT)
- Dual switch (half-bridge)
- VCE(sat) 2.20 V typ. / 2.70 V max. at 1,800 A, Tj = 25 °C
- Maximum junction temperature 175 °C
- Isolation voltage 4,000 V RMS
- Flat base Type
- Aluminum base plate
- RoHS Directive compliance
- Recognized under UL1557, File E323585
Target Applications
Mitsubishi CM1800DY-34S is used for Wind power, Photovoltaic (Solar) power, AC Motor Control, Motion/Servo Control and Power supply.
Key Specifications
CM1800DY-34S is a 1,700 V / 1,800 A dual (half-bridge) IGBT module from Mitsubishi Electric, S series (6th generation IGBT). Source: Mitsubishi Electric datasheet (September 2014).
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | IGBT module |
| Series | S series (6th generation IGBT) |
| Configuration | Dual switch (half-bridge) |
| Collector-emitter voltage (VCES) | 1,700 V |
| Collector current (IC, DC, TC = 105 °C) | 1,800 A |
| Repetitive peak collector current (ICRM, pulse) | 3,600 A |
| Total power dissipation (Ptot, TC = 25 °C) | 11,535 W |
| VCE(sat) (terminal), IC = 1,800 A, VGE = 15 V, Tj = 25 °C | 2.20 V typ. / 2.70 V max. |
| Gate-emitter threshold voltage VGE(th) | 5.4 / 6.0 / 6.6 V (min. / typ. / max.) |
| Isolation voltage (Visol, AC 1 min) | 4,000 V RMS |
| Maximum junction temperature (Tjmax) | 175 °C |
| Operating junction temperature | -40 to +150 °C |
| Mounting torque (to heat sink) | M5 screw: 2.5 - 3.5 N·m (typ. 3.0) |
| Mounting torque (main terminals) | M6 screw: 3.5 - 4.5 N·m (typ. 4.0) |
| Mass (typ.) | 2,000 g |
| Supply status (Mitsubishi) | Discontinued by Mitsubishi |
| Applications (datasheet) | Wind power, Photovoltaic (Solar) power, AC Motor Control, Motion/Servo Control, Power supply, etc. |
| Datasheet | Available on this page (PDF) |
