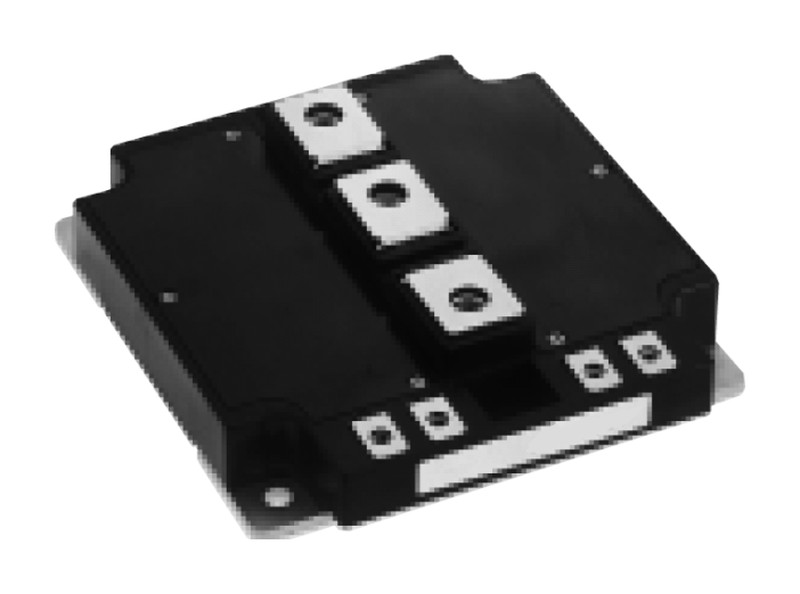

CM800DY-24S Mitsubishi - IGBT Module

CM800DY-24S Description

CM800DY-24S is a 1,200 V / 800 A dual (half-bridge) IGBT module from Mitsubishi Electric, S series (6th generation IGBT). Datasheet ratings: 800 A DC at TC = 117 °C, VCE(sat) 1.95 V typ. at 800 A, 2,500 V RMS isolation. Typical applications: AC Motor Control, Motion/Servo Control, Power supply. Mitsubishi lists it as not recommended for new design.

USComponent supplies CM800DY-24S and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM800DY-24S is used for AC Motor Control, Motion/Servo Control and Power supply.

Key Specifications

CM800DY-24S is a 1,200 V / 800 A dual (half-bridge) IGBT module from Mitsubishi Electric, S series (6th generation IGBT). Source: Mitsubishi Electric datasheet (February 2015).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	S series (6th generation IGBT)
Configuration	Dual switch (half-bridge)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC, DC, TC = 117 °C)	800 A
Repetitive peak collector current (ICRM, pulse)	1,600 A
Total power dissipation (Ptot, TC = 25 °C)	5,355 W
VCE(sat) (terminal), IC = 800 A, VGE = 15 V, Tj = 25 °C	1.95 V typ. / 2.40 V max.
Gate-emitter threshold voltage VGE(th)	5.4 / 6.0 / 6.6 V (min. / typ. / max.)
Isolation voltage (Visol, AC 1 min)	2,500 V RMS
Maximum junction temperature (Tjmax)	175 °C
Operating junction temperature	-40 to +150 °C
Mounting torque (to heat sink)	M6 screw: 3.5 - 4.5 N·m (typ. 4.0)
Mounting torque (main terminals)	M8 screw: 8.8 - 10.8 N·m (typ. 9.8)
Mass (typ.)	1,200 g
Supply status (Mitsubishi)	Not recommended for new design (Mitsubishi supply outlook date 2026/09)
Applications (datasheet)	AC Motor Control, Motion/Servo Control, Power supply, etc.
Datasheet	Available on this page (PDF)
