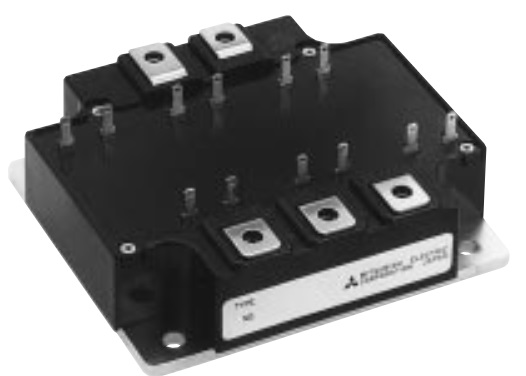

CM100TU-12FMitsubishi - IGBT Power Transistor Module

CM100TU-12F Description

The Mitsubishi Electric CM100TU-12F is an IGBT module rated at 600 V and 100 A, available from USComponent. Components of this type are commonly used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM100TU-12F.

Target Applications

Mitsubishi CM100TU-12F is used for General Purpose Inverter, Uninterruptible Power Supply, Servo & Spindle Drive for CNC Machine Tools, Robotics (Servo Drive for Robots), Switching Power Supplies for Welding Machines.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Six-pack - six IGBTs in three-phase bridge configuration with free-wheel diodes
Series	F-Series
VCES	600 V
IC	100 A (TC = 25 °C)
ICM (peak)	200 A
VCE(sat) typ.	1.6 V @ 100 A
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M4: 1.3 - 1.7 N·m
Mounting torque	M5: 2.5 - 3.5 N·m
Weight	570 g
Junction temperature	-40 to +150 °C
