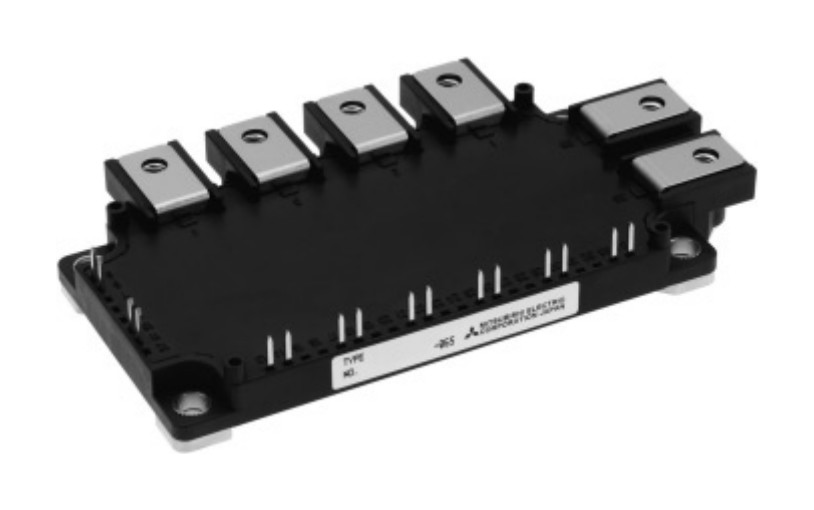

CM100RX-24A Mitsubishi - IGBT Module

CM100RX-24A Description

CM100RX-24A is a 1,200 V / 100 A seven-pack (inverter + brake) IGBT module from Mitsubishi Electric, A series. Datasheet ratings: 100 A DC at TC = 90 °C, VCE(sat) 2.0 V typ. at 100 A, 2,500 V RMS isolation. Typical applications: General purpose Inverters, Servo Amplifiers. It is discontinued by Mitsubishi; USComponent still sources it.

USComponent supplies CM100RX-24A and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM100RX-24A is used for General purpose Inverters and Servo Amplifiers.

Key Specifications

CM100RX-24A is a 1,200 V / 100 A seven-pack (inverter + brake) IGBT module from Mitsubishi Electric, A series. Source: Mitsubishi Electric datasheet (Jan. 2009).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	A series
Configuration	Seven-pack (3-phase inverter + brake chopper)
Collector-emitter voltage (VCES, inverter part)	1,200 V
Collector current (IC, DC, TC = 90 °C, inverter part)	100 A
Repetitive peak collector current (ICRM, pulse, inverter part)	200 A
Total power dissipation (Ptot, TC = 25 °C, inverter part)	625 W
VCE(sat), IC = 100 A, VGE = 15 V, Tj = 25 °C, inverter part	2.0 V typ. / 2.6 V max.
Gate-emitter threshold voltage VGE(th), inverter part	6 / 7 / 8 V (min. / typ. / max.)
Isolation voltage (Visol, AC 1 min)	2,500 V RMS
Junction temperature (Tj)	-40 to +150 °C
Mounting torque (to heat sink)	M5 screw: 2.5 - 3.5 N·m
Mounting torque (main terminals)	M5 screw: 2.5 - 3.5 N·m
Mass (typ.)	330 g
Supply status (Mitsubishi)	Discontinued by Mitsubishi
Applications (datasheet)	General purpose Inverters, Servo Amplifiers
Datasheet	Available on this page (PDF)
