CM150RX-24T Mitsubishi - IGBT Module

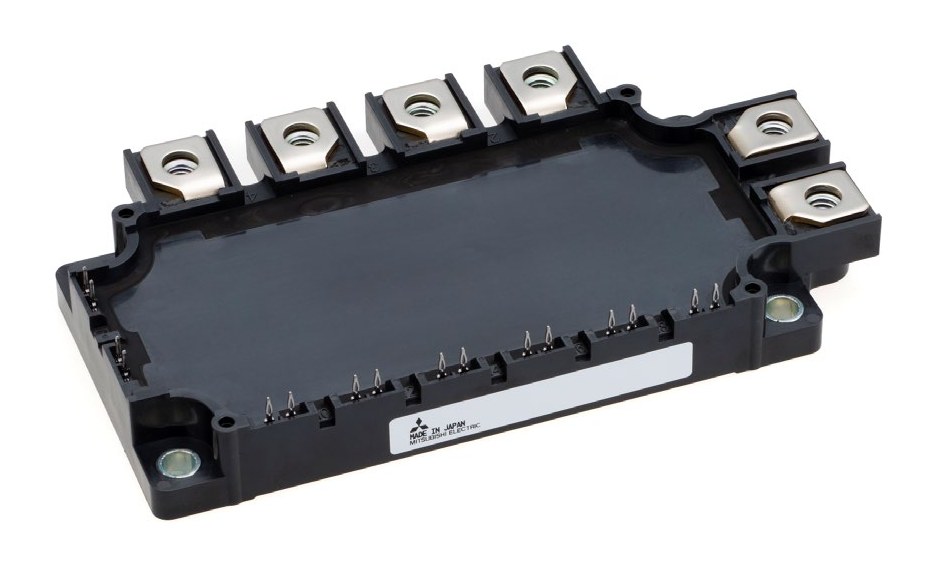

CM150RX-24T Description

CM150RX-24T is a 1200 V / 150 A seven-pack (3-phase inverter + brake) IGBT module from Mitsubishi Electric (NX Type package). Typical applications: AC Motor Control, Motion/Servo Control, Power supply.

USComponent supplies CM150RX-24T and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM150RX-24T is used for AC Motor Control, Motion/Servo Control, Power supply.

Key Specifications

CM150RX-24T is a 1200 V / 150 A seven-pack (3-phase inverter + brake) IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	T series
Configuration	Seven-pack (3-phase inverter + brake)
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	150 A
Isolation voltage (Viso)	2,500 V RMS
Package	NX Type
Package size	77.1 x 137 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)

Note: the Mitsubishi datasheet covers CM150RX-24T / CM150RXP-24T.

Technical document (PDF)  |  Request a quote for CM150RX-24T (reply within 24 hours)
