CM200RX-12A Mitsubishi - IGBT Module

CM200RX-12A Description

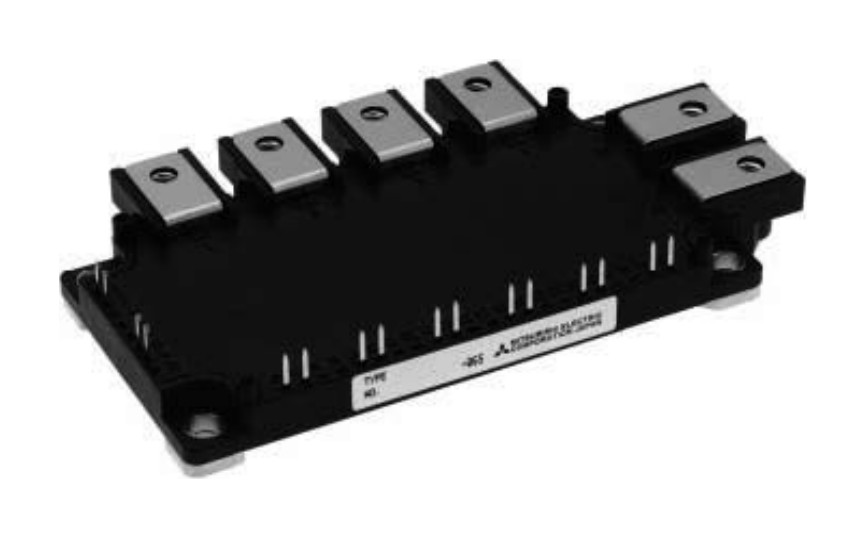

CM200RX-12A is a 600 V / 200 A seven-pack (inverter + brake) IGBT module from Mitsubishi Electric, A series. Datasheet ratings: 200 A DC at TC = 68 °C, VCE(sat) 1.7 V typ. at 200 A, 2,500 V RMS isolation. Typical applications: AC Motor Control, Motion/Servo Control. It is discontinued by Mitsubishi; USComponent still sources it.

USComponent supplies CM200RX-12A and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM200RX-12A is used for AC Motor Control and Motion/Servo Control.

Key Specifications

CM200RX-12A is a 600 V / 200 A seven-pack (inverter + brake) IGBT module from Mitsubishi Electric, A series. Source: Mitsubishi Electric datasheet (August 2014).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	A series
Configuration	Seven-pack (3-phase inverter + brake chopper)
Collector-emitter voltage (VCES, inverter part)	600 V
Collector current (IC, DC, TC = 68 °C, inverter part)	200 A
Repetitive peak collector current (ICRM, pulse, inverter part)	400 A
Total power dissipation (Ptot, TC = 25 °C, inverter part)	735 W
VCE(sat), IC = 200 A, VGE = 15 V, Tj = 25 °C, inverter part	1.7 V typ. / 2.1 V max.
Gate-emitter threshold voltage VGE(th), inverter part	5 / 6 / 7 V (min. / typ. / max.)
Isolation voltage (Visol, AC 1 min)	2,500 V RMS
Junction temperature (Tj)	-40 to +150 °C
Mounting torque (to heat sink)	M5 screw: 2.5 - 3.5 N·m (typ. 3.0)
Mounting torque (main terminals)	M5 screw: 2.5 - 3.5 N·m (typ. 3.0)
Mass (typ.)	350 g
Supply status (Mitsubishi)	Discontinued by Mitsubishi
Applications (datasheet)	AC Motor Control, Motion/Servo Control, etc.
Datasheet	Available on this page (PDF)
