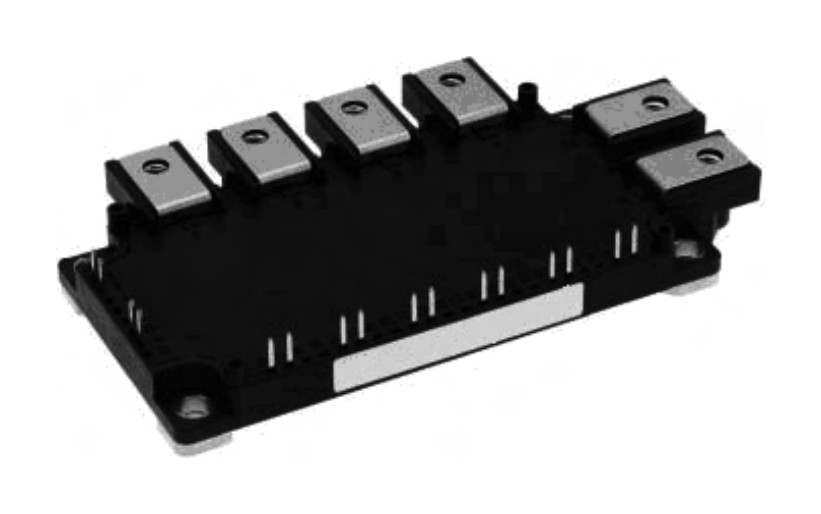

CM100RX-24S Mitsubishi - IGBT Module
CM100RX-24S Description
CM100RX-24S is a 1,200 V / 100 A seven-pack (inverter + brake) IGBT module from Mitsubishi Electric, S series (6th generation IGBT). Datasheet ratings: 100 A DC at TC = 119 °C, VCE(sat) 1.80 V typ. at 100 A, 2,500 V RMS isolation. Typical applications: AC Motor Control, Motion/Servo Control, Power supply. Mitsubishi lists it as not recommended for new design and names the NX-type T series as the alternative.
USComponent supplies CM100RX-24S and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
CM100RX-24S is a 1,200 V / 100 A seven-pack (inverter + brake) IGBT module from Mitsubishi Electric.
- 1,200 V / 100 A seven-pack (inverter + brake) IGBT module
- S series (6th generation IGBT)
- Seven-pack (3-phase inverter + brake chopper)
- VCE(sat) 1.80 V typ. / 2.25 V max. at 100 A, Tj = 25 °C
- Maximum junction temperature 175 °C
- Isolation voltage 2,500 V RMS
- Flat base Type
- Copper base plate (non-plating)
- Tin plating pin terminals
- RoHS Directive compliant
- Recognized under UL1557, File E323585
Target Applications
Mitsubishi CM100RX-24S is used for AC Motor Control, Motion/Servo Control and Power supply.
Key Specifications
CM100RX-24S is a 1,200 V / 100 A seven-pack (inverter + brake) IGBT module from Mitsubishi Electric, S series (6th generation IGBT). Source: Mitsubishi Electric datasheet (August 2013).
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | IGBT module |
| Series | S series (6th generation IGBT) |
| Configuration | Seven-pack (3-phase inverter + brake chopper) |
| Collector-emitter voltage (VCES, inverter part) | 1,200 V |
| Collector current (IC, DC, TC = 119 °C, inverter part) | 100 A |
| Repetitive peak collector current (ICRM, pulse, inverter part) | 200 A |
| Total power dissipation (Ptot, TC = 25 °C, inverter part) | 750 W |
| VCE(sat) (terminal), IC = 100 A, VGE = 15 V, Tj = 25 °C, inverter part | 1.80 V typ. / 2.25 V max. |
| Gate-emitter threshold voltage VGE(th), inverter part | 5.4 / 6.0 / 6.6 V (min. / typ. / max.) |
| Isolation voltage (Visol, AC 1 min) | 2,500 V RMS |
| Maximum junction temperature (Tjmax) | 175 °C |
| Operating junction temperature | -40 to +150 °C |
| Mounting torque (to heat sink) | M5 screw: 2.5 - 3.5 N·m (typ. 3.0) |
| Mounting torque (main terminals) | M5 screw: 2.5 - 3.5 N·m (typ. 3.0) |
| Mass (typ.) | 370 g |
| Supply status (Mitsubishi) | Not recommended for new design (Mitsubishi supply outlook date 2026/09); alternative: NX-type T series |
| Applications (datasheet) | AC Motor Control, Motion/Servo Control, Power supply, etc. |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for CM100RX-24S (reply within 24 hours)
