IXKN75N60C IXYS - Power MOSFET Module

IXKN75N60C Description

IXYS makes the IXKN75N60C, a 600 V, 75 A power MOSFET (CoolMOS). Fast switching makes it a good fit for SMPS, DC-DC converters and low-voltage, high-current motor drives.

Need the IXKN75N60C? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

IXYS IXKN75N60C is used for high-frequency power switching in switch mode power supplies, DC-DC converters, battery-powered vehicles and equipment, welding machines and induction heating.

Key Specifications

IXKN75N60C is a 600 V / 75 A MOSFET module from IXYS. Source: manufacturer datasheet (detailed).

Parameter	Value
Manufacturer	IXYS
Product type	MOSFET module
Configuration	Single N-channel MOSFET (CoolMOS)
Package	miniBLOC, SOT-227 B
Drain-source voltage (VDSS)	600 V (TVJ = 25 °C to 150 °C)
Continuous drain current (ID25)	75 A (TC = 25 °C)
Continuous drain current (ID90)	50 A (TC = 90 °C)
Pulsed drain current (ID puls)	250 A (tp limited by TJmax)
On-resistance (RDS(on))	typ. 30 mΩ / max. 36 mΩ (VGS = 10 V, ID = ID90)
Gate threshold voltage (VGS(th))	2.1 to 3.9 V (VDS = 20 V, ID = 5 mA)
Total gate charge (Qg)	500 nC (VGS = 0 to 10 V, VDS = 350 V, ID = 100 A)
Thermal resistance (RthJC)	0.22 K/W
Operating junction temperature (TVJ)	-55 to +150 °C

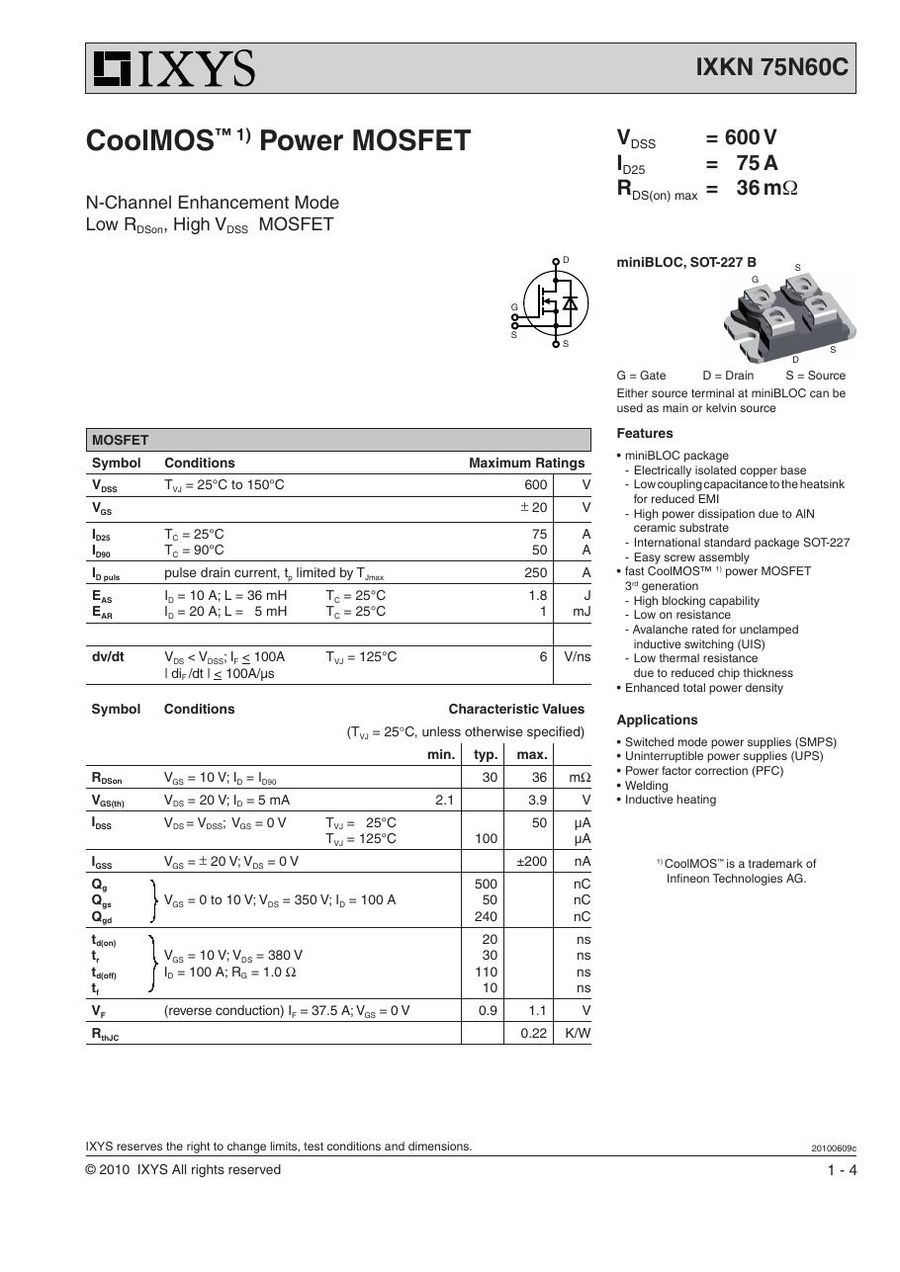

Datasheet	Available on this page (PDF)
