TZ430N20 Infineon - Thyristor / Diode Module
TZ430N20 Description
The TZ430N20 is a thyristor module made by Infineon Technologies. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls.
Request a quote for the TZ430N20 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.
Target Applications
Infineon TZ430N20 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.
Key Specifications

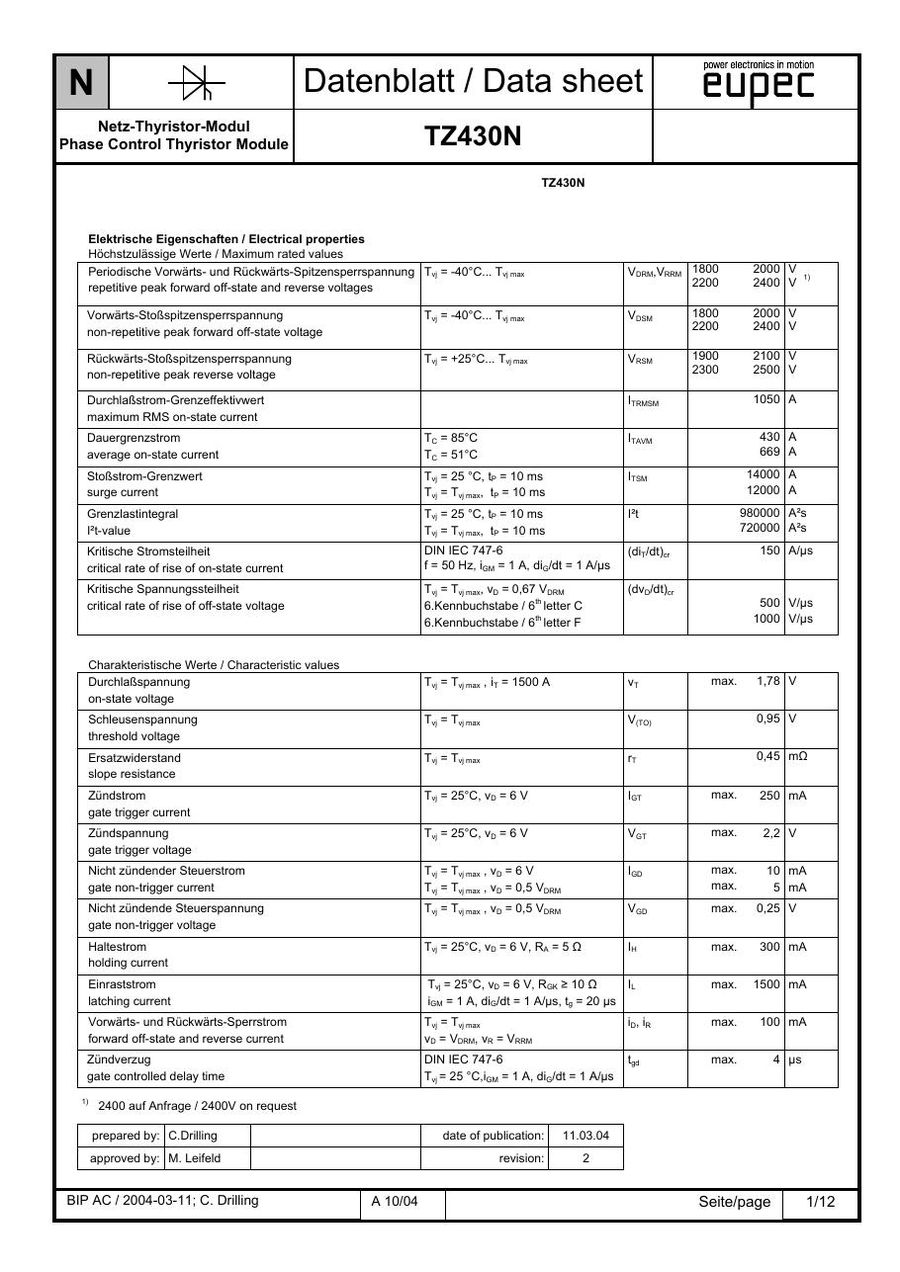

TZ430N20 is an eupec (Infineon) PowerBLOCK single thyristor module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).
| Parameter | Value |
|---|---|
| Manufacturer | eupec (Infineon Technologies) |
| Product type | PowerBLOCK single thyristor module |
| Repetitive peak off-state / reverse voltage (VDRM / VRRM) | 2000 V (series 1800 to 2200 V) |
| Average on-state current (ITAVM), 180° el sin | 430 A at Tc = 85 °C |
| RMS current (ITRMSM) | 1050 A |
| Surge current (ITSM), 10 ms, Tvj max | 12000 A |
| I²t, 10 ms, Tvj max | 720 × 10³ A²s |
| Threshold voltage V(T0) | 0.95 V |
| Slope resistance rT | 0.45 mΩ |
| Critical rate of rise of on-state current (di/dt)cr | 150 A/µs |
| Turn-off time tq, typ. | 300 µs |
| Critical rate of rise of off-state voltage (dv/dt)cr | 1000 V/µs |
| Thermal resistance RthJC | 0.065 °C/W |
| Thermal resistance RthCK | 0.02 °C/W |
| Max. junction temperature Tvj max | 125 °C |
| Package (outline) | TP50.1 |
