TZ430N08 Infineon - Thyristor / Diode Module
TZ430N08 Description
The TZ430N08 is a thyristor module made by Infineon Technologies. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls.
USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the TZ430N08 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.
Target Applications
Infineon TZ430N08 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.
Key Specifications

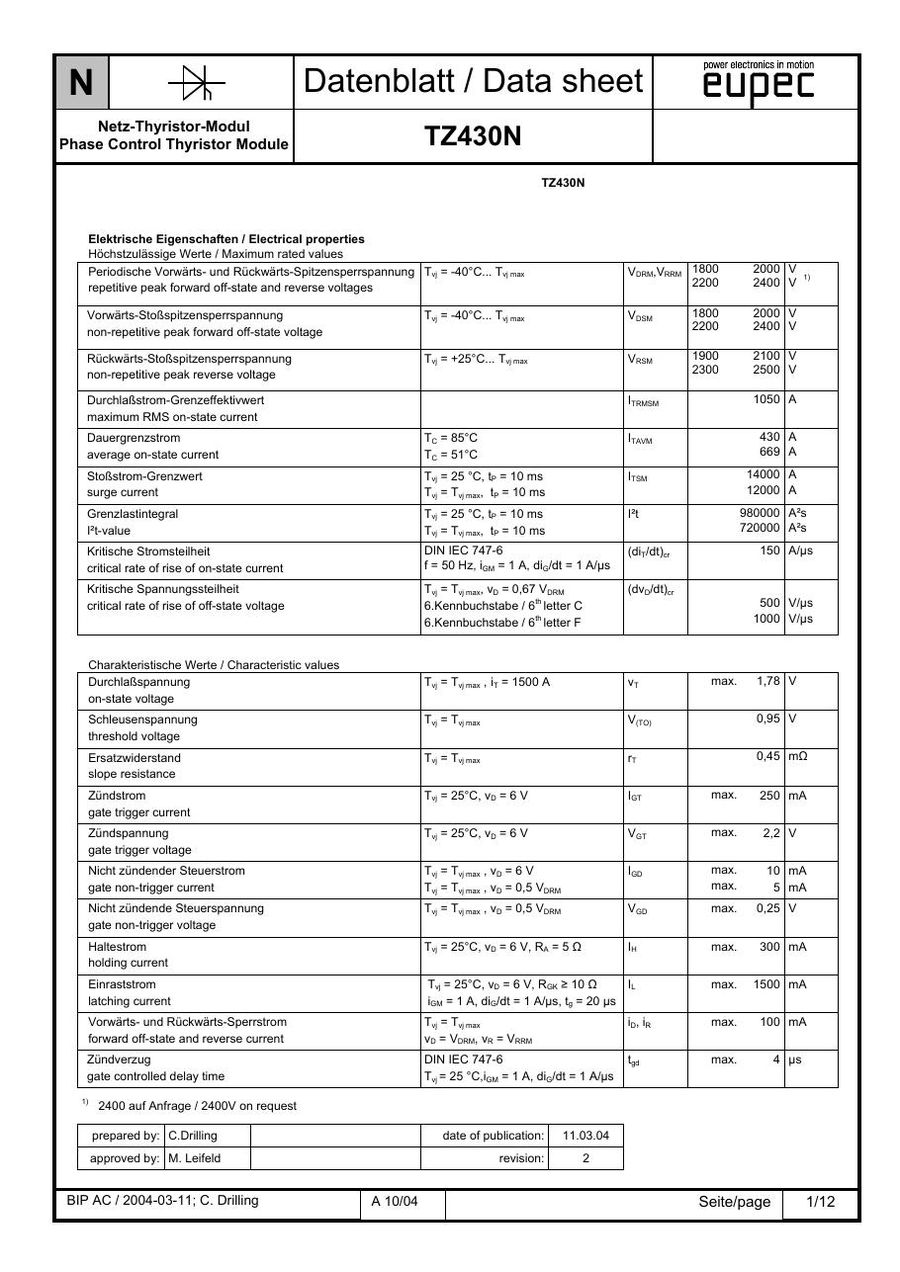

TZ430N08 is an eupec (Infineon) PowerBLOCK single thyristor module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).
| Parameter | Value |
|---|---|
| Manufacturer | eupec (Infineon Technologies) |
| Product type | PowerBLOCK single thyristor module |
| Repetitive peak off-state / reverse voltage (VDRM / VRRM), series range | 1800 to 2200 V |
| Average on-state current (ITAVM), 180° el sin | 430 A at Tc = 85 °C |
| RMS current (ITRMSM) | 1050 A |
| Surge current (ITSM), 10 ms, Tvj max | 12000 A |
| I²t, 10 ms, Tvj max | 720 × 10³ A²s |
| Threshold voltage V(T0) | 0.95 V |
| Slope resistance rT | 0.45 mΩ |
| Critical rate of rise of on-state current (di/dt)cr | 150 A/µs |
| Turn-off time tq, typ. | 300 µs |
| Critical rate of rise of off-state voltage (dv/dt)cr | 1000 V/µs |
| Thermal resistance RthJC | 0.065 °C/W |
| Thermal resistance RthCK | 0.02 °C/W |
| Max. junction temperature Tvj max | 125 °C |
| Package (outline) | TP50.1 |
Technical document (PDF) | Request a quote for TZ430N08 (reply within 24 hours)
Related Part Numbers
| TZ425N08 800V, 425A | TZ400N08 800V, 400A | TZ500N08 800V, 500A | TZ310N08 800V, 310A |
| TZ430N12 1200V, 430A | TZ430N16 1600V, 430A | TZ430N18 1800V, 430A | TZ430N20 2000V, 430A |
| TZ430N12KOF 1200(V) / 430(A) | TZ430N14KOF 1400(V) / 430(A) | TZ430N16KOF 1600(V) / 430(A) | TZ430N18KOF 1800 (V) / 430(A) |
| TZ430N22KOF 2200V, 430A | TZ425N20 2000V, 425A | TZ425N18KOF 1800V, 425A | TZ425N18 1800V, 425A |
