TZ500N20 Infineon - Thyristor / Diode Module

TZ500N20 Description

Infineon Technologies makes the TZ500N20, a thyristor module. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the TZ500N20; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Infineon TZ500N20 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TZ500N20 is a 2,000 V, 500 A thyristor module (single). Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module (single)
Repetitive peak voltage (VDRM / VRRM)	2,000 V
Rated on-state current	500 A

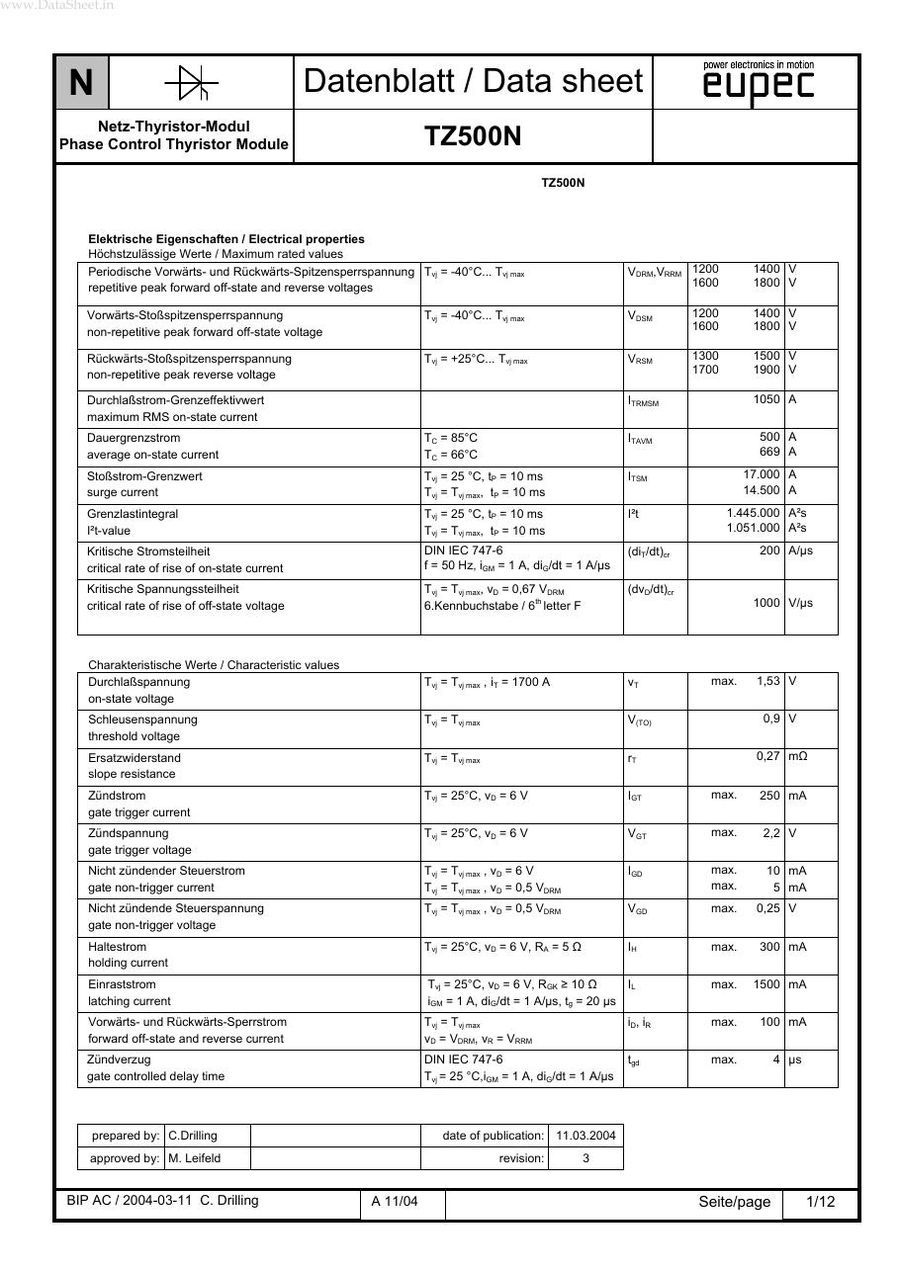

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TZ500N20 (reply within 24 hours)
