TZ430N16 Infineon - Thyristor / Diode Module

Category: Thyristor & SCR Modules

Specifications: 1600V, 430A

TZ430N16 Infineon Thyristor / Diode Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

TZ430N16 Description

Infineon Technologies TZ430N16 is a thyristor module. Common uses are AC switches, soft starters, DC drives and controlled rectifiers in industrial power equipment.

Need the TZ430N16? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Target Applications

Infineon TZ430N16 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

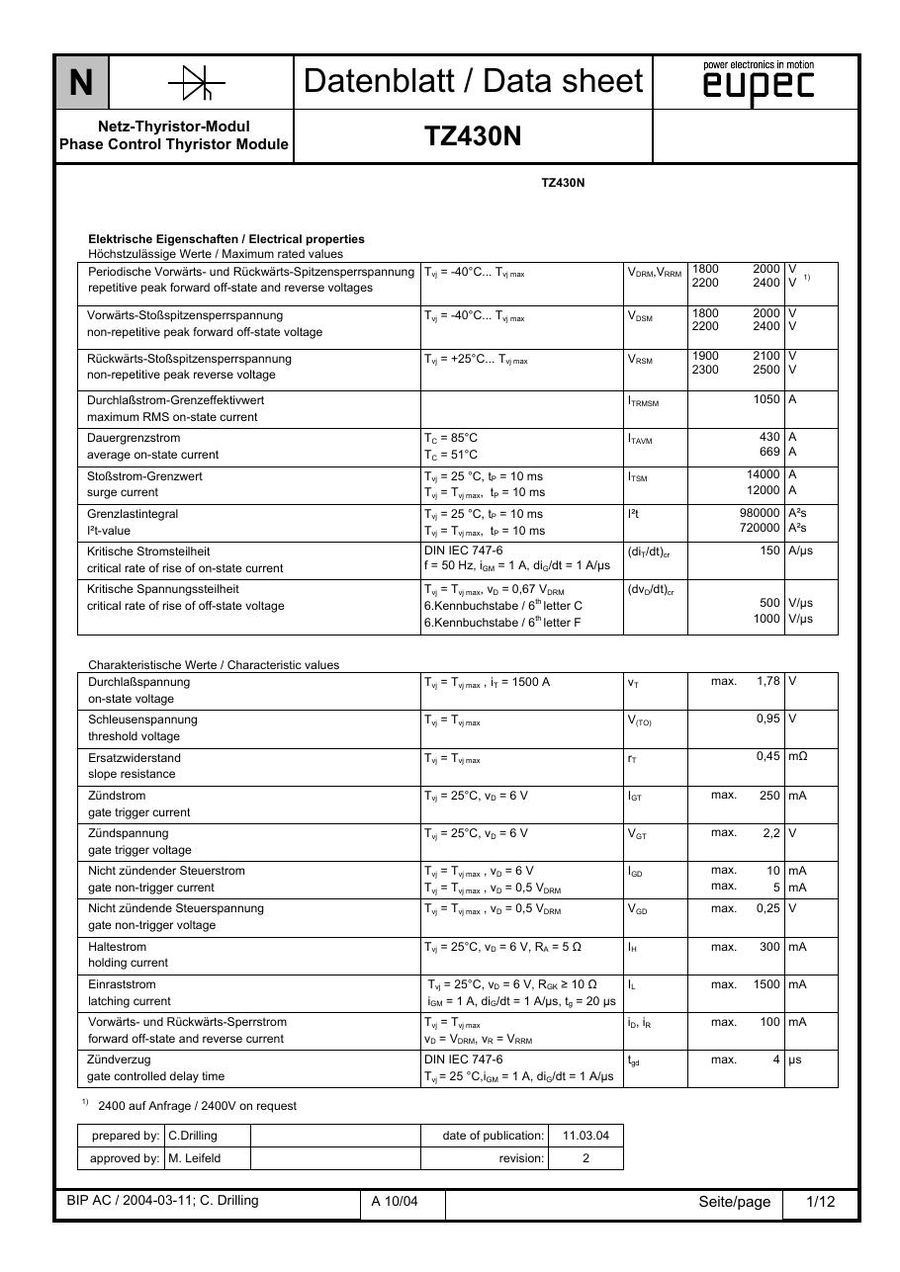

TZ430N16 is an eupec (Infineon) PowerBLOCK single thyristor module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

ParameterValue
Manufacturereupec (Infineon Technologies)
Product typePowerBLOCK single thyristor module
Repetitive peak off-state / reverse voltage (VDRM / VRRM), series range1800 to 2200 V
Average on-state current (ITAVM), 180° el sin430 A at Tc = 85 °C
RMS current (ITRMSM)1050 A
Surge current (ITSM), 10 ms, Tvj max12000 A
I²t, 10 ms, Tvj max720 × 10³ A²s
Threshold voltage V(T0)0.95 V
Slope resistance rT0.45 mΩ
Critical rate of rise of on-state current (di/dt)cr150 A/µs
Turn-off time tq, typ.300 µs
Critical rate of rise of off-state voltage (dv/dt)cr1000 V/µs
Thermal resistance RthJC0.065 °C/W
Thermal resistance RthCK0.02 °C/W
Max. junction temperature Tvj max125 °C
Package (outline)TP50.1

Technical document (PDF)  |  Request a quote for TZ430N16 (reply within 24 hours)
