TT92N08KOFInfineon - Thyristor Module

TT92N08KOF Description

Infineon Technologies TT92N08KOF is a thyristor module rated at 800 V and 160 A. Typical applications for this type of device include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TT92N08KOF.

Target Applications

Infineon TT92N08KOF is used for InvertersDmotocontrolSwitchinpowesuppliesAmotocontrol.

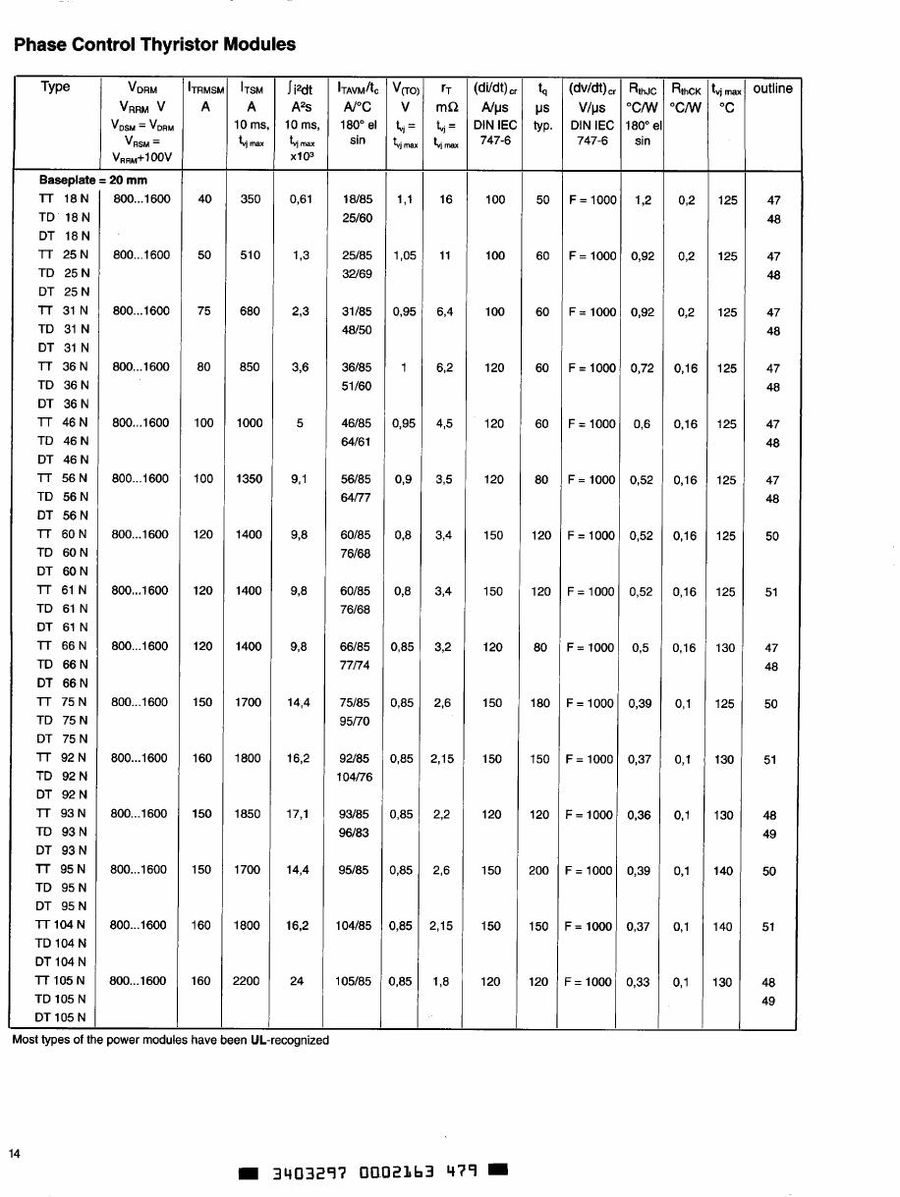

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Phase control thyristor module, two thyristors (TT)
VDRM / VRRM	800 V
ITAVM	92 A (TC = 85 °C)
ITRMSM	160 A
ITSM	1800 A (10 ms, Tvj max)
I²t	16,200 A²s
Threshold voltage VT(TO) / slope resistance rT	0.85 V / 2.15 mΩ
Critical di/dt	150 A/µs
Critical dv/dt	1000 V/µs
Turn-off time tq typ.	150 µs
Junction temperature	130 °C max.
