TT61N08KOF Infineon - SCR Module
Discontinued: Infineon recommended replacement: TT61N12KOF. We supply both the original TT61N08KOF and the replacement - check the datasheets before switching.
TT61N08KOF Description
The TT61N08KOF is a thyristor module made by Infineon Technologies (formerly Eupec). Common uses are AC switches, soft starters, DC drives and controlled rectifiers in industrial power equipment. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.
USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the TT61N08KOF, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.
Target Applications
Infineon TT61N08KOF is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.
Key Specifications
TT61N08KOF is an eupec (Infineon) PowerBLOCK thyristor module (thyristor/thyristor). Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).
| Parameter | Value |
|---|---|
| Manufacturer | eupec (Infineon Technologies) |
| Product type | PowerBLOCK thyristor module (thyristor/thyristor) |
| Repetitive peak off-state / reverse voltage (VDRM / VRRM), series range | 1200 to 1600 V |
| Average on-state current (ITAVM), 180° el sin | 60 A at Tc = 85 °C |
| RMS current (ITRMSM) | 120 A |
| Surge current (ITSM), 10 ms, Tvj max | 1400 A |
| I²t, 10 ms, Tvj max | 9.8 × 10³ A²s |
| Threshold voltage V(T0) | 0.80 V |
| Slope resistance rT | 3.40 mΩ |
| Critical rate of rise of on-state current (di/dt)cr | 150 A/µs |
| Turn-off time tq, typ. | 120 µs |
| Critical rate of rise of off-state voltage (dv/dt)cr | 1000 V/µs |
| Thermal resistance RthJC | 0.52 °C/W |
| Thermal resistance RthCK | 0.16 °C/W |
| Max. junction temperature Tvj max | 125 °C |
| Package (outline) | TP20 |

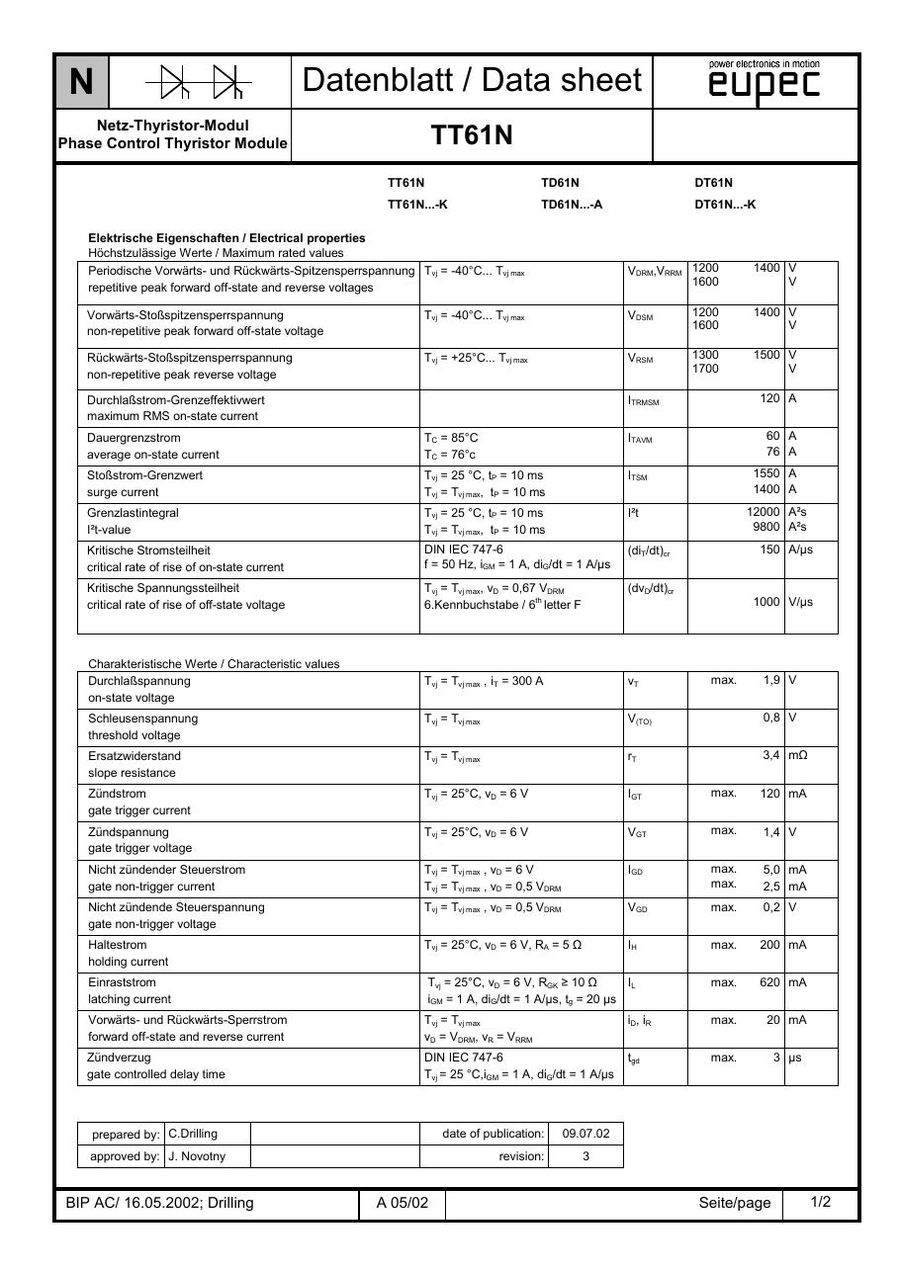

Technical document (PDF) | Request a quote for TT61N08KOF (reply within 24 hours)
Related Part Numbers
| TT56N08KOF 800V, 100A | TT46N08KOF 800V, 100A | TT61N12KOF 61A/1200V | TT92N08KOF 92A/800V |
| TT93N08KOF 800V, 150A | TT61N14KOF 1400V, 61A | TT61N16KOF 1600V, 61A | TT131N08KOF 800V, 131A |
| TT61N08LOF 800V, 61A | TT61N06LOF 600V, 61A | TT61N04LOF 400V, 61A | TT61N12 1200V, 120A |
| TT61N12KOF-K 1200V, 60A | TT61N12LOF 1200V, 61A | TT61N14LOF 1400V, 61A | TT61N16KOF-18F9 1600V, 61A |
