TT92N1200KOF Infineon - DUAL-SCR

Category: Thyristor & SCR Modules

Specifications: 1200V, 92A

TT92N1200KOF, Eupec Infineon power module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

TT92N1200KOF Description

The Infineon Technologies (formerly Eupec) TT92N1200KOF is a thyristor module, rated for 1400 V. Common uses are AC switches, soft starters, DC drives and controlled rectifiers in industrial power equipment.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the TT92N1200KOF; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Target Applications

Infineon TT92N1200KOF is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

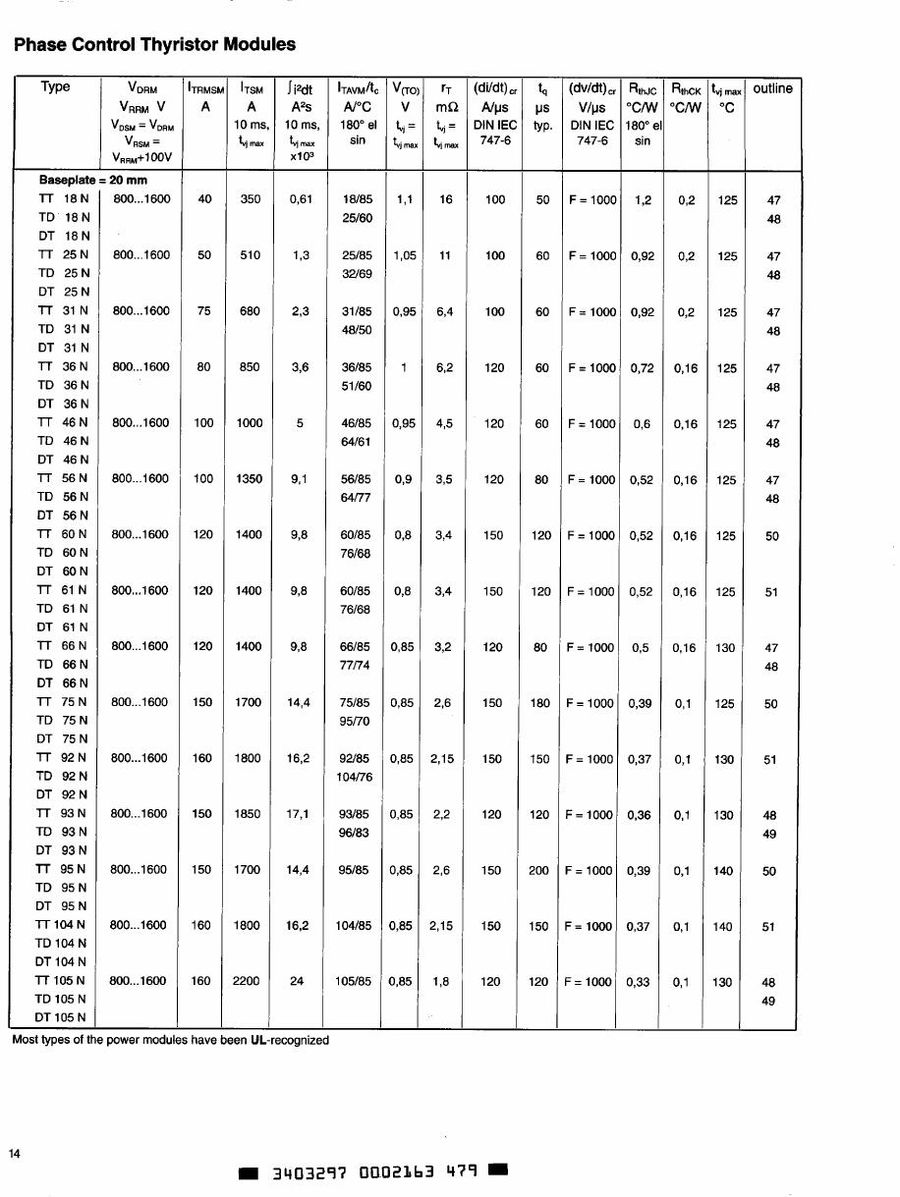

TT92N1200KOF is an eupec (Infineon) PowerBLOCK thyristor module (thyristor/thyristor). Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

ParameterValue
Manufacturereupec (Infineon Technologies)
Product typePowerBLOCK thyristor module (thyristor/thyristor)
Repetitive peak off-state / reverse voltage (VDRM / VRRM)1200 V (series 1000 to 1600 V)
Average on-state current (ITAVM), 180° el sin92 A at Tc = 85 °C
RMS current (ITRMSM)160 A
Surge current (ITSM), 10 ms, Tvj max1800 A
I²t, 10 ms, Tvj max16.2 × 10³ A²s
Threshold voltage V(T0)0.85 V
Slope resistance rT2.15 mΩ
Critical rate of rise of on-state current (di/dt)cr150 A/µs
Turn-off time tq, typ.150 µs
Critical rate of rise of off-state voltage (dv/dt)cr1000 V/µs
Thermal resistance RthJC0.37 °C/W
Thermal resistance RthCK0.10 °C/W
Max. junction temperature Tvj max130 °C
Package (outline)TP20

Technical document (PDF)  |  Request a quote for TT92N1200KOF (reply within 24 hours)

Related Part Numbers

TT95N1200KOF
1200V, 95A		TT60N1200KOF
1200V, 120A		TT56N1200KOF
1200V, 56A		TT46N1200KOF
1200V, 100A
TT36N1200KOF
1200V, 80A		TT251N1200KOF
250A/1200V		TT18N1200KOF
1200V, 40A		TT93N08KOF
800V, 150A
TT92N12KOF
1200V, 160A		TT92N12
1200V, 92A		TT92N12KOFB4
1200V, 92A		TT92N12LOF
1200V, 102A
TT92N14KOF
1400V, 92A		TT92N14KOFB4
1400V, 92A		TT92N14LOF
1400V, 92A		TT92N16
1600V, 92A
