FZ900R12KP4 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 900A

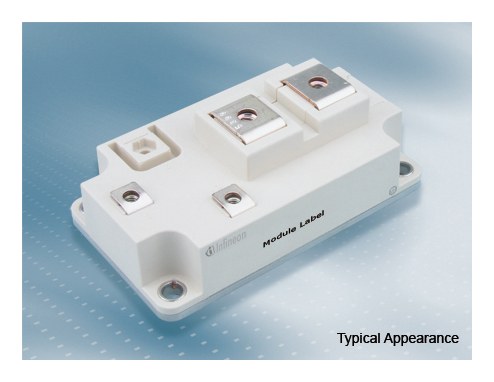

FZ900R12KP4 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FZ900R12KP4 Description

FZ900R12KP4 is a 1200 V / 900 A single switch IGBT module from Infineon Technologies. Typical applications: high power converters, Motor drives, UPS systems, Wind turbines.

USComponent supplies FZ900R12KP4 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Extended operating temperature Tvj op
  • Low Vcesat
  • Unbeatable robustness
  • Vcesat with positive temperature coefficient
  • *4kV AC 1min lsolationsfestigkeit *4kV AC 1min insulation
  • High creepage and clearance distances
  • High power density
  • Isolated base plate

Target Applications

Infineon FZ900R12KP4 is used for High power converters, Motor drives, UPS systems, Wind turbines.

Key Specifications

FZ900R12KP4 is a 1200 V / 900 A single switch IGBT module from Infineon Technologies (62mm package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSingle switch
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)900 A
Package62mm
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FZ900R12KP4 (reply within 24 hours)

Related Part Numbers

FZ600R12KP4
1200V, 600A		FZ400R12KP4
1200V, 400A		FZ900R12KE4
1200V, 900A		FZ900R12KF4
1200V, 900A
FZ1000R12KF4
1200V, 1000A		FZ800R12KL4C
1200V 800A		FZ900R16KF1
1600V, 900A		FZ900R12KF5
1200V, 900A
FZ900R16KF4
1600V, 900A		FZ900R12KF1
1200V, 900A		FZ900R12KE3
1200(V) / 900(A)		FZ825R33HE4D
3300V, 825A
FZ800R45KL3_B5
4500V, 800A		FZ800R33KL2
3300V, 800A		FZ800R33KF2C_S1
3300V, 800A		FZ800R33KF2C_B3_S2
3300V, 800A
