FZ600R12KP4 Infineon - IGBT Module

FZ600R12KP4 Description

Infineon Technologies FZ600R12KP4 is an IGBT module rated at 1200 V and 600 A. It is built with a single switch with its freewheeling diode (1-in-1). You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the FZ600R12KP4; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Infineon FZ600R12KP4 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FZ600R12KP4 is a 1,200 V, 600 A IGBT module, single switch configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single switch
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	600 A

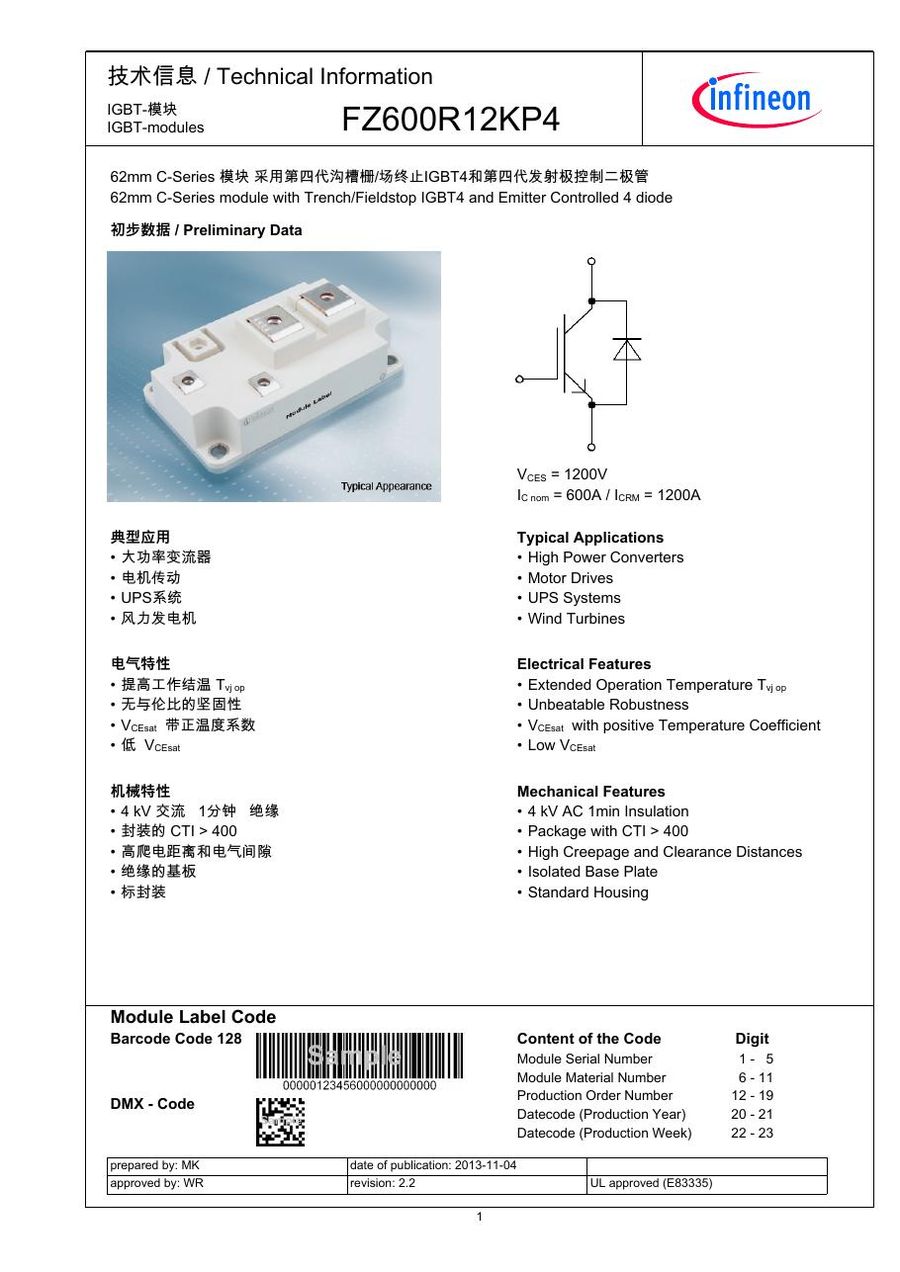

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FZ600R12KP4 (reply within 24 hours)
