FZ400R12KP4 Infineon - IGBT Module

FZ400R12KP4 Description

Rated at 1200 V and 400 A, the Infineon Technologies FZ400R12KP4 is an IGBT module. Inside, it has a single switch with its freewheeling diode (1-in-1). Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

Looking for a replacement FZ400R12KP4? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Infineon FZ400R12KP4 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FZ400R12KP4 is a 1,200 V, 400 A IGBT module, single switch configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single switch
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	400 A

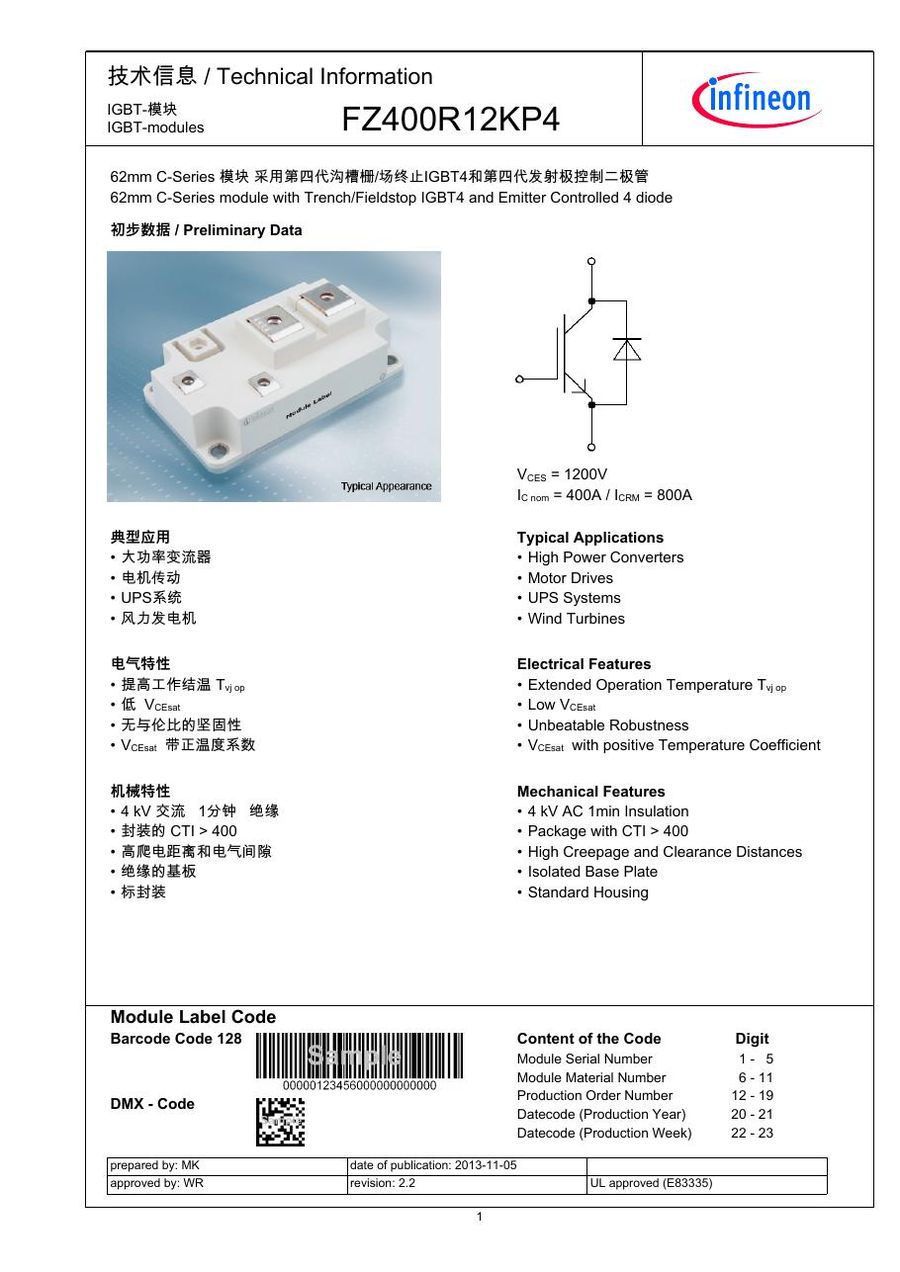

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FZ400R12KP4 (reply within 24 hours)
