FZ2400R17KF6C_B2Infineon - IGBT Module

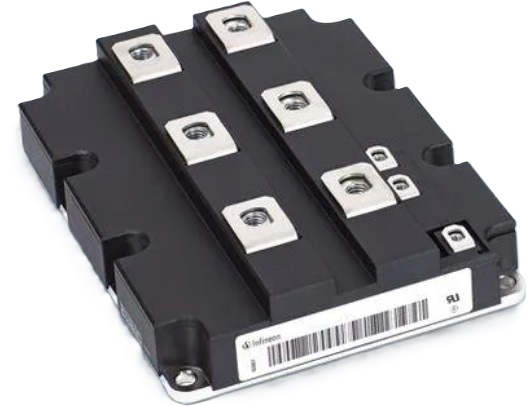

FZ2400R17KF6C_B2 Description

The Infineon Technologies FZ2400R17KF6C_B2 is an IGBT module rated at 1700 V and 2400 A. This type of device is widely used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the FZ2400R17KF6C_B2.

Summary of Features

FZ2400R17KF6C_B2 is a 1700V 2400A IGBT Module.

Target Applications

Infineon FZ2400R17KF6C_B2 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Single switch - IGBT with free-wheeling diode
VCES	1700 V
IC	2400 A (TC = 80 °C) / 3800 A (TC = 25 °C)
ICRM	4800 A (tp = 1 ms, TC = 80 °C)
Isolation test voltage	4 kV RMS, 50 Hz, 1 min
Mounting torque	5 Nm
Terminal torque	M4: 2 Nm; M8: 8 - 10 Nm
Weight	1500 g
