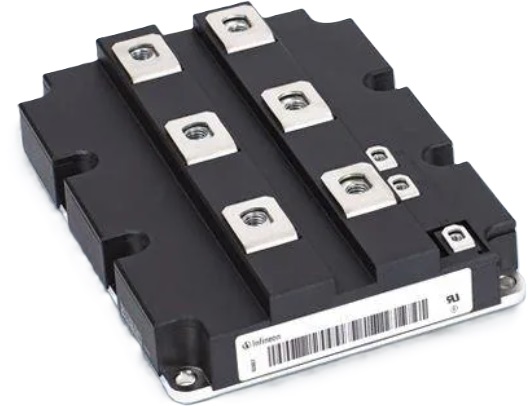

FZ2400R17KF6C_B2_S1 Infineon - IGBT Module

FZ2400R17KF6C_B2_S1 Description

Infineon Technologies makes the FZ2400R17KF6C_B2_S1, a 1700 V, 2400 A IGBT module. It is built with a single switch with its freewheeling diode (1-in-1). Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the FZ2400R17KF6C_B2_S1, and please confirm ratings against the datasheet before ordering.

Target Applications

Infineon FZ2400R17KF6C_B2_S1 is used for High Power Converter and Motor Drives.

Key Specifications

Note: the S1 version is the same module as the standard FZ2400R17KF6C_B2, tested with a Siemens-specific grouping (Infineon). The datasheet on this page is the FZ2400R17KF6C_B2 datasheet.

Status: discontinued by Infineon (Product Discontinuation PD_121_16, last order date 2018-03-31). Infineon recommended replacement: FZ2400R17HP4_B29. Infineon advises checking the datasheet limits and gate drive conditions before using the replacement. USComponent can still source the original FZ2400R17KF6C_B2_S1 as well as the replacement.

Technical document (PDF)  |  Request a quote for FZ2400R17KF6C_B2_S1 (reply within 24 hours)
