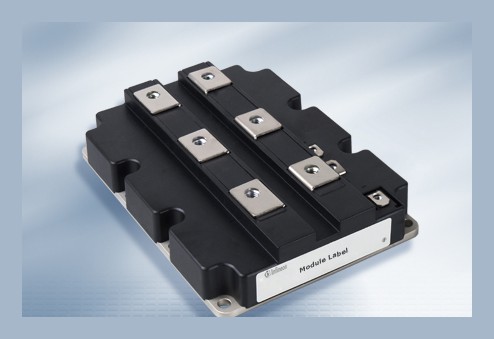

FZ2400R17HE4P_B9 Infineon - IGBT Module

FZ2400R17HE4P_B9 Description

FZ2400R17HE4P_B9 is a 1700 V, 2400 A Infineon single switch IGBT module (fast IGBT4 (Trench/Fieldstop), Emitter Controlled diode), used for wind and solar converters, traction and high-power drives.

USComponent supplies FZ2400R17HE4P_B9 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FZ2400R17HE4P_B9 is used for Wind and solar converters, traction and high-power drives.

Key Specifications

FZ2400R17HE4P_B9 is a 1,700 V, 2,400 A Infineon IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single switch (1-in-1)
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC nom)	2,400 A
Technology	fast IGBT4 (Trench/Fieldstop), Emitter Controlled diode
Package	IHM-B, pre-applied thermal interface material

Technical document (PDF)  |  Request a quote for FZ2400R17HE4P_B9 (reply within 24 hours)
