FZ1200R33HE4D_B9 Infineon - IGBT Module

Also written as: FZ1200R33HE4D-B9

Replacement for: Infineon recommends FZ1200R33HE4D_B9 as the replacement for FZ1200R33KF2C, FZ1200R33KF2C_B3_S2, FZ1200R33KF2C_S1. We also supply the original parts.

Category: IGBT Modules

Specifications: 3300V, 1200A

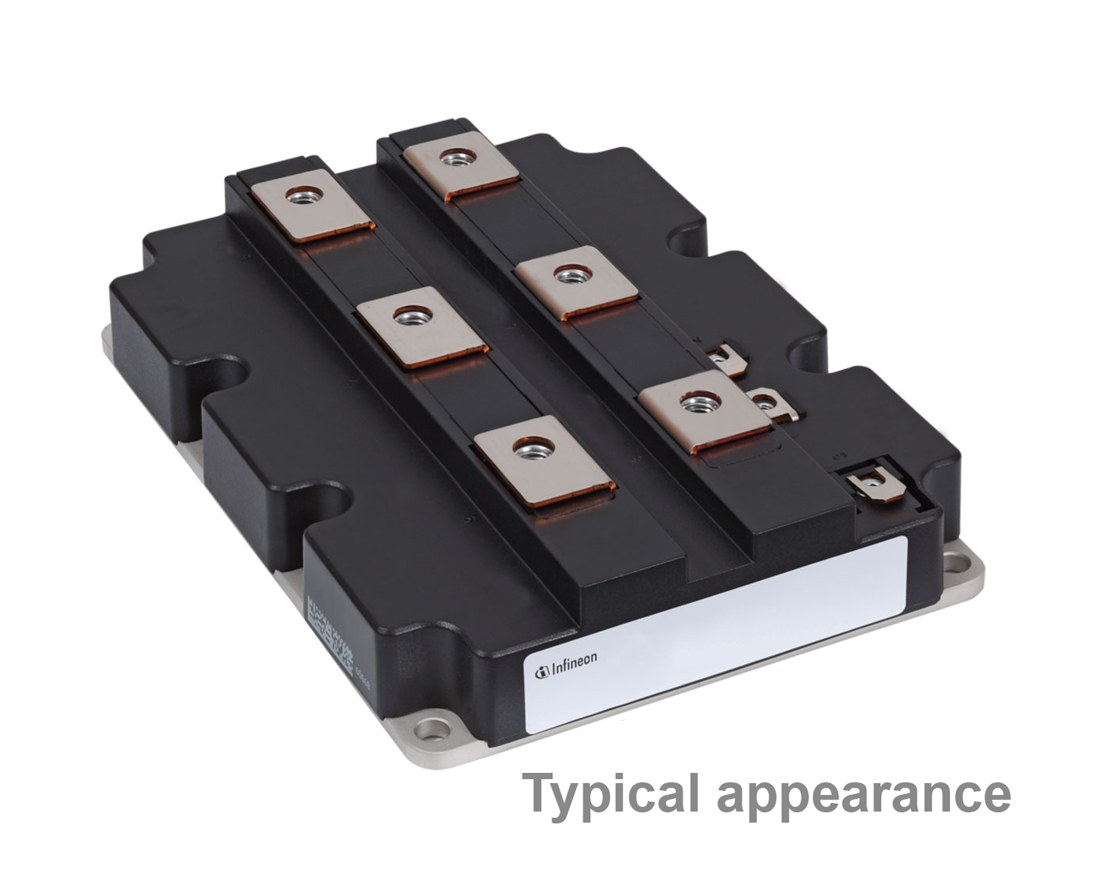

FZ1200R33HE4D_B9 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FZ1200R33HE4D_B9 Description

FZ1200R33HE4D_B9 is a 3300 V / 1200 A single switch IGBT module from Infineon Technologies. Typical applications: high-power converters, Medium-voltage converters, Motor drives, Traction drives, UPS systems, Active frontend (energy recovery).

USComponent supplies FZ1200R33HE4D_B9 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High current density
  • High DC stability
  • High short-circuit capability
  • Low switching losses

Target Applications

Infineon FZ1200R33HE4D_B9 is used for High-power converters, Medium-voltage converters, Motor drives, Traction drives, UPS systems, Active frontend (energy recovery).

Key Specifications

FZ1200R33HE4D_B9 is a 3300 V / 1200 A single switch IGBT module from Infineon Technologies (IHM-B package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSingle switch
Collector-emitter voltage (VCES)3300 V
Nominal collector current (IC nom)1200 A
PackageIHM-B
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FZ1200R33HE4D_B9 (reply within 24 hours)

Related Part Numbers

FZ1400R33HE4
3300V 1400A		FZ1200R33HE3
3300V 1200A		FZ1600R33HE4
3300V, 1600A		FZ1200R45HL4
4500V, 1200A
FZ1200R45HL4_B8
4500V, 1200A		FZ1200R45HL4_S7
4500V, 1200A		FZ1200R33KF2
3300V, 2000A		FZ1200R33KF2C
3300V, 1200A
FZ1200R17KF6C_B2
1700V 1200A		FZ1200R33KF2C-b3-s5
3300V, 1200A		FZ1200R17KF6B2
1200A/1700V		FZ1200R33KF2C_B3_S2
3300V, 1200A
FZ1200R17KF4
1700V, 1200A		FZ1200R33KF2C_B6
3300V, 1200A		FZ1200R17KE3_B2
1700V, 1200A		FZ1200R33KF2C_S1
3300V, 1200A
