FZ1200R17KF6C-B2Infineon - IGBT Module

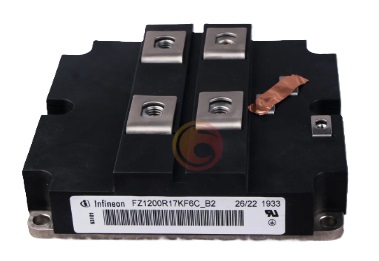

FZ1200R17KF6C-B2 Description

The Infineon Technologies FZ1200R17KF6C-B2 is an IGBT module rated at 1700 V and 1200 A. Components of this type are commonly used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the FZ1200R17KF6C-B2.

Summary of Features

FZ1200R17KF6C-B2 is a 1700V 1200A IGBT Module.

Target Applications

Infineon FZ1200R17KF6C-B2 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies
Configuration	Single switch - IGBT with free-wheeling diode
VCES	1700 V
IC nom	1200 A (TC = 80 °C)
ICRM	2400 A (tp = 1 ms)
Isolation test voltage	4.0 kV RMS, 50 Hz, 1 min
Mounting torque	4.25 - 5.75 Nm
Terminal torque	1.8 - 2.1 Nm; 8.0 - 10 Nm
Weight	1050 g
Operating junction temperature	-40 to +125 °C
