FZ1200R12KE3Infineon - IGBT

FZ1200R12KE3 Description

The Infineon Technologies (formerly Eupec) FZ1200R12KE3 is an IGBT module rated at 1200 V and 1700 A. Components of this type are commonly used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the FZ1200R12KE3.

Target Applications

Infineon FZ1200R12KE3 is used for High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply, Inverter for motor drive.

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Single switch - IGBT with free-wheeling diode
Technology	IGBT3
VCES	1200 V
IC	1200 A (TC = 80 °C)
ICRM	2400 A (tp = 1 ms, TC = 80 °C)
Isolation test voltage	2.5 kV RMS, 50 Hz, 1 min

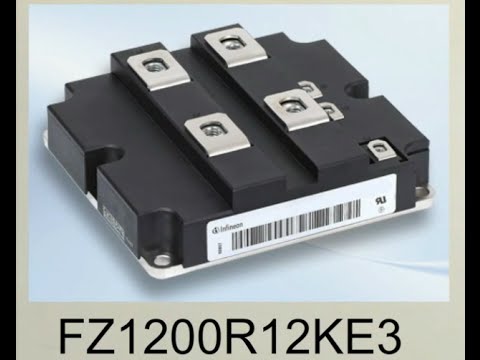

FZ1200R12KE3 Video

Download FZ1200R12KE3 Datasheet

FZ1200R12KE3 PDF Datasheet
