FS75R07N2E4 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 650V, 75A

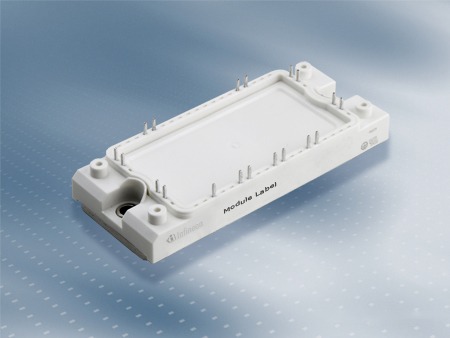

FS75R07N2E4 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS75R07N2E4 Description

FS75R07N2E4 is a 650 V, 75 A Infineon EconoPACK 2 sixpack IGBT module, used for motor drives.

USComponent supplies FS75R07N2E4 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 650 V / 75 A sixpack IGBT module
  • Trench/Fieldstop IGBT4 with Emitter Controlled 4 diode
  • EconoPACK 2 housing, copper base plate, solder contact technology
  • VCE(sat) typ. 1.55 V (25 °C)
  • Integrated NTC temperature sensor
  • Tvj op = 150 °C, isolation 2.5 kV RMS

Target Applications

Infineon FS75R07N2E4 is used for Motor drives.

Key Specifications

FS75R07N2E4 is a 650 V, 75 A Infineon EconoPACK 2 sixpack IGBT module. Source: Infineon product page / datasheet.

ParameterValue
Product typeIGBT module
ConfigurationSixpack (six-pack)
Collector-emitter voltage (VCES)650 V
Collector current (IC nom)75 A
TechnologyTrench/Fieldstop IGBT4
PackageEconoPACK 2

Replacement for discontinued parts: Infineon recommends FS75R07N2E4 as the replacement for BSM75GD60DLC, BSM75GP60 (Product Discontinuation PD_257_19). Check the datasheet limits and pinout when replacing.

Technical document (PDF)  |  Request a quote for FS75R07N2E4 (reply within 24 hours)
