FS300R12N3E7 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 300A

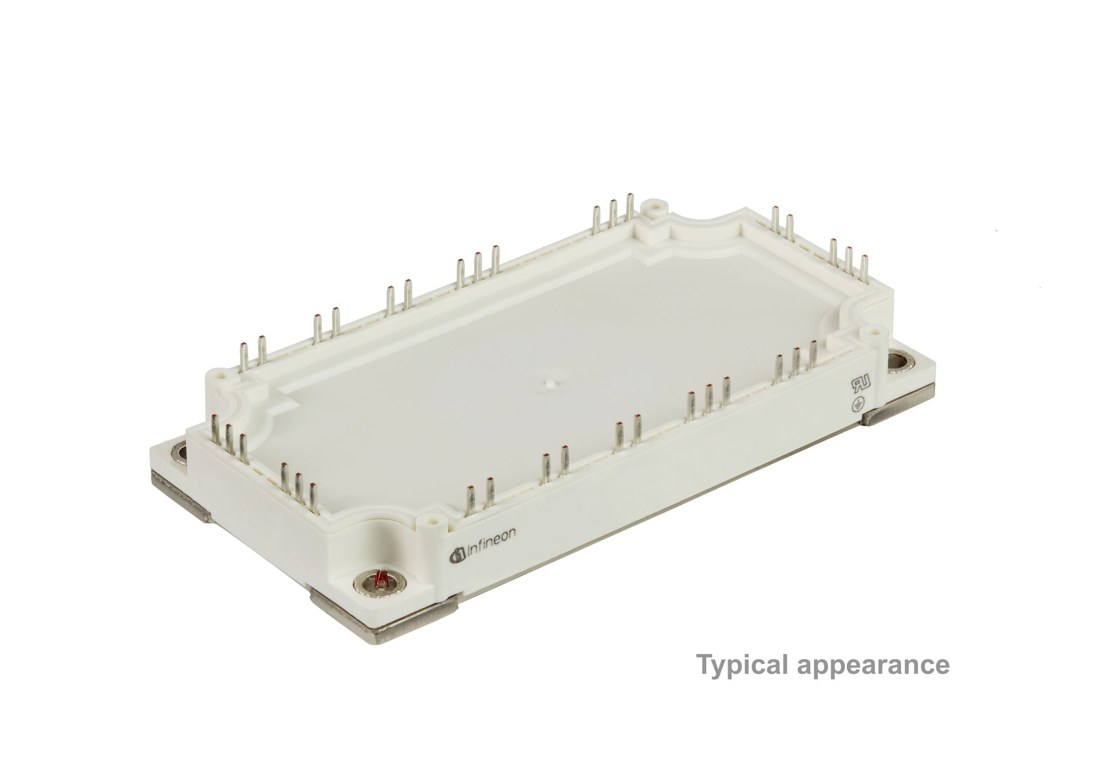

FS300R12N3E7 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FS300R12N3E7 Description

FS300R12N3E7 is a 1200 V / 300 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: auxiliary inverters, Motor drives, Servo drives.

USComponent supplies FS300R12N3E7 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Overload operation up to 175°C
  • TRENCHSTOP IGBT7
  • High power and thermal cycling capability
  • Solder contact technology
  • Integrated NTC temperature sensor

Target Applications

Infineon FS300R12N3E7 is used for Auxiliary inverters, Motor drives, Servo drives.

Key Specifications

FS300R12N3E7 is a 1200 V / 300 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (EconoPACK 3 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSix-pack (3-phase bridge)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)300 A
PackageEconoPACK 3
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS300R12N3E7 (reply within 24 hours)

Related Part Numbers

FS300R12KE3FS300R12KE3-AGDR-71CFS300R12KE4FS300R12KF4
FS300R12OE4PFS300R16KF4FS300R17KE3FS300R17KE4
FS300R17KE3-AGDR-66CFS30R06VE3FS30R06W1E3FS30R06W1E3_B11
FS30R06XE3FS30R06XL4FS33MR12W1M1H_B11FS33MR12W1M1H_B70
