FS75R06KE3 Infineon - IGBT Module

FS75R06KE3 Description

The Infineon Technologies FS75R06KE3 is an IGBT module, rated for 600 V and 75 A. The module contains six switches arranged as a three-phase bridge (6-in-1). It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the FS75R06KE3 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Infineon FS75R06KE3 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FS75R06KE3 is a 600 V, 75 A IGBT module, six-pack configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	75 A

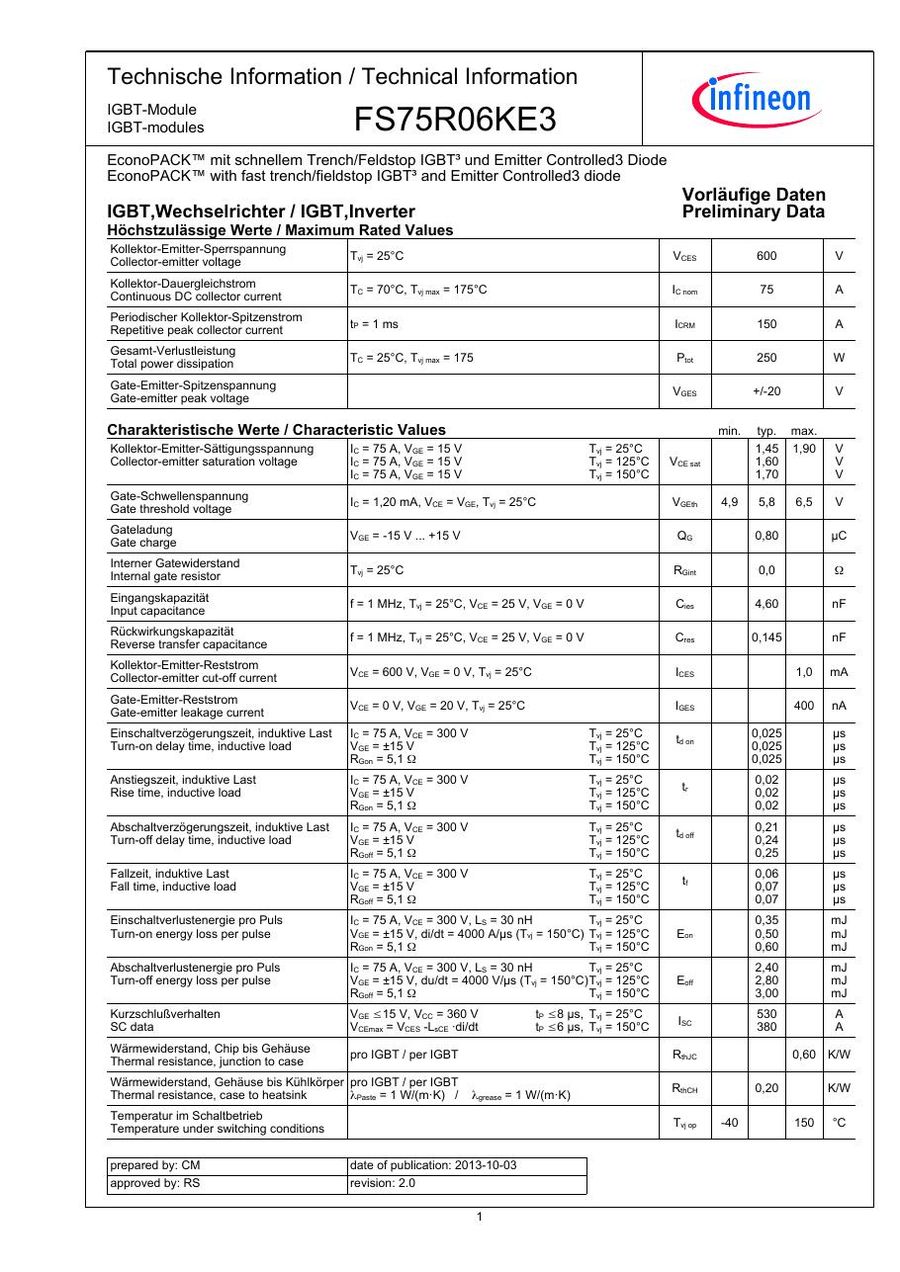

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FS75R06KE3 (reply within 24 hours)
