FS200R07N3E4R Infineon - IGBT Module

Category: IGBT Modules

Specifications: 650V, 200A

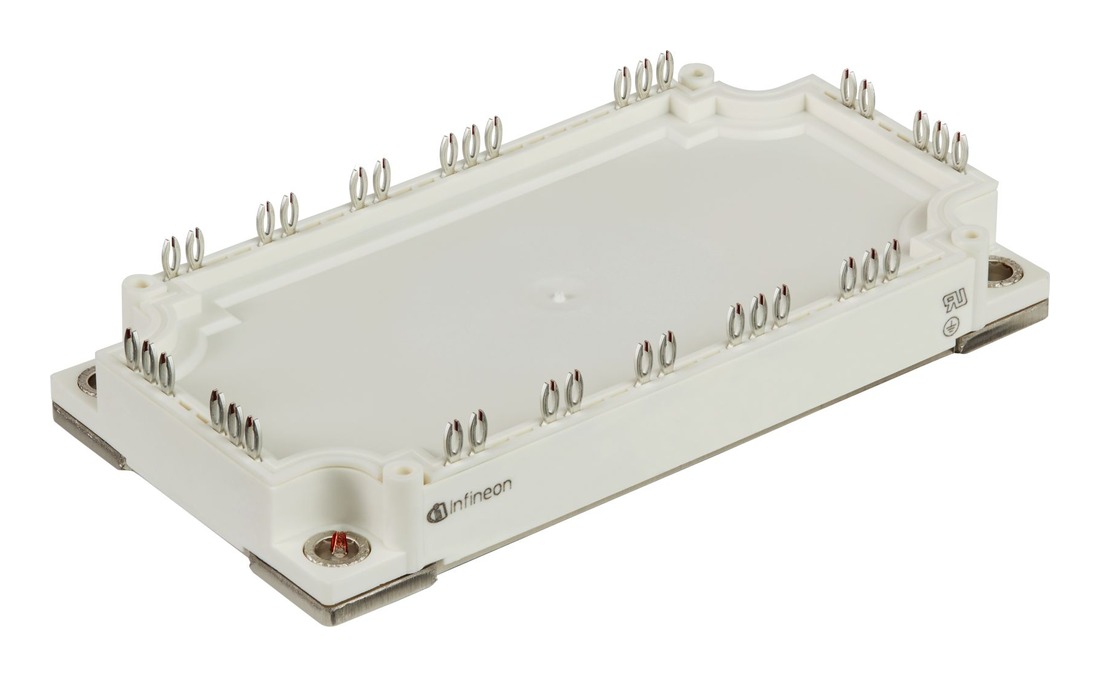

FS200R07N3E4R Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS200R07N3E4R Description

FS200R07N3E4R is a 650 V, 200 A Infineon EconoPACK 3 sixpack IGBT module, used for motor drives.

USComponent supplies FS200R07N3E4R and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 650 V / 200 A sixpack IGBT module
  • TRENCHSTOP IGBT4 with Emitter Controlled 4 diode
  • EconoPACK 3 housing, copper base plate, solder contact technology
  • High short-circuit capability, self-limiting short-circuit current
  • Integrated NTC temperature sensor
  • Tvj op = 150 °C

Target Applications

Infineon FS200R07N3E4R is used for Motor drives.

Key Specifications

FS200R07N3E4R is a 650 V, 200 A Infineon EconoPACK 3 sixpack IGBT module. Source: Infineon product page / datasheet.

ParameterValue
Product typeIGBT module
ConfigurationSixpack (six-pack)
Collector-emitter voltage (VCES)650 V
Collector current (IC nom)200 A
TechnologyTRENCHSTOP IGBT4
PackageEconoPACK 3

Replacement for discontinued parts: Infineon recommends FS200R07N3E4R as the replacement for BSM200GD60DLC (Product Discontinuation PD_257_19). Check the datasheet limits and pinout when replacing.

Technical document (PDF)  |  Request a quote for FS200R07N3E4R (reply within 24 hours)
