FS3L40R12W2H7P_B11 Infineon - IGBT Module

Also written as: FS3L40R12W2H7P-B11

Category: IGBT Modules

Specifications: 1200V, 40A

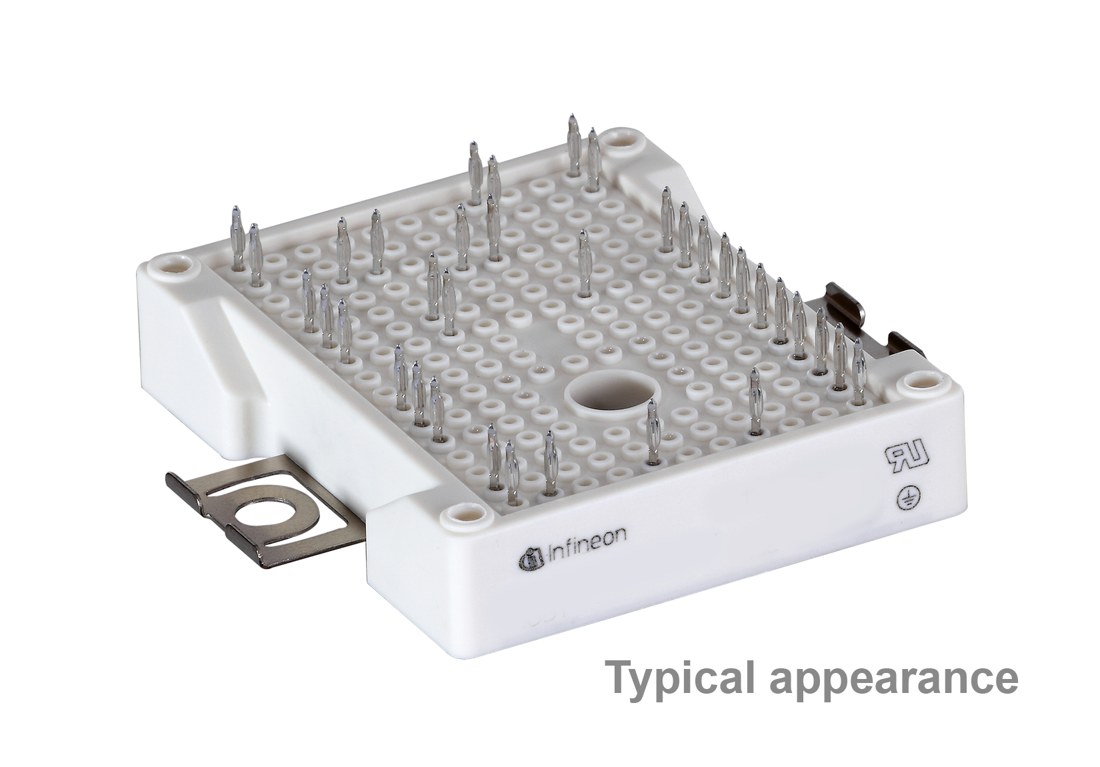

FS3L40R12W2H7P_B11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS3L40R12W2H7P_B11 Description

FS3L40R12W2H7P_B11 is a 1200 V / 40 A 3-level six-pack IGBT module from Infineon Technologies. Typical applications: three-level applications, Solar applications.

USComponent supplies FS3L40R12W2H7P_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra fast IGBT chips
  • Overload operation up to 175°C
  • Low switching losses

Target Applications

Infineon FS3L40R12W2H7P_B11 is used for Three-level applications, Solar applications.

Key Specifications

FS3L40R12W2H7P_B11 is a 1200 V / 40 A 3-level six-pack IGBT module from Infineon Technologies (EasyPACK 2B package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level six-pack
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)40 A
PackageEasyPACK 2B
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS3L40R12W2H7P_B11 (reply within 24 hours)
