FS3L100R07W3S5_B11 Infineon - IGBT Module

Also written as: FS3L100R07W3S5-B11

Category: IGBT Modules

Specifications: 650V, 100A

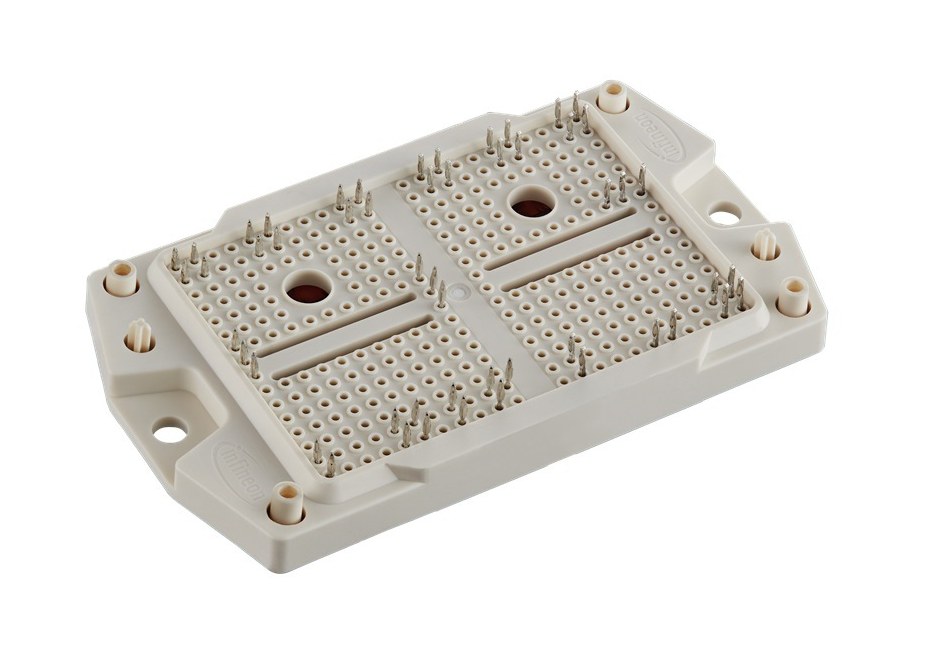

FS3L100R07W3S5_B11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS3L100R07W3S5_B11 Description

FS3L100R07W3S5_B11 is a 650 V / 100 A 3-level six-pack IGBT module from Infineon Technologies. Typical applications: solar applications.

USComponent supplies FS3L100R07W3S5_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low switching losses
  • Al2O3 substrate with low thermal resistance
  • Integrated NTC temperature sensor
  • PressFIT contact technology

Target Applications

Infineon FS3L100R07W3S5_B11 is used for Solar applications.

Key Specifications

FS3L100R07W3S5_B11 is a 650 V / 100 A 3-level six-pack IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level six-pack
Collector-emitter voltage (VCES)650 V
Nominal collector current (IC nom)100 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS3L100R07W3S5_B11 (reply within 24 hours)
