FS400R07A3E3_H6 Infineon - IGBT Module

Also written as: FS400R07A3E3-H6

Replacement for: Infineon recommends FS400R07A3E3_H6 as the replacement for FS400R07A1E3_H5. We also supply the original part.

Category: IGBT Modules

Specifications: 700V, 400A

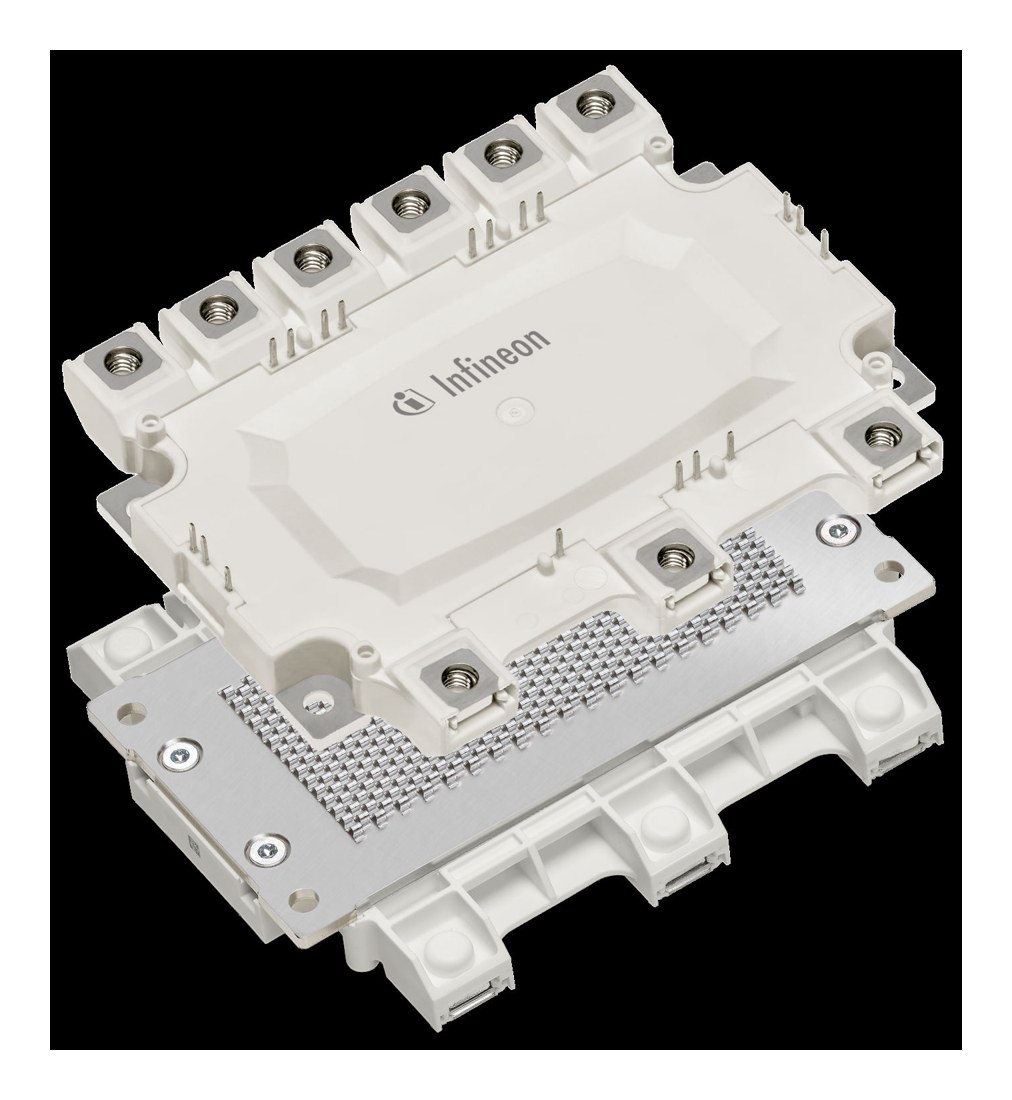

FS400R07A3E3_H6 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS400R07A3E3_H6 Description

FS400R07A3E3_H6 is a 700 V / 400 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: (Hybrid) electrical vehicles (H)EV, Motor drives, Optimized for automotive applications with DC link voltages up to 450 V.

USComponent supplies FS400R07A3E3_H6 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low switching losses
  • VCE,sat with positive temperature coefficient
  • Increased blocking voltage capability to 705 V
  • Low inductive design

Target Applications

Infineon FS400R07A3E3_H6 is used for (Hybrid) electrical vehicles (H)EV, Motor drives, Optimized for automotive applications with DC link voltages up to 450 V.

Key Specifications

FS400R07A3E3_H6 is a 700 V / 400 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (HybridPACK DC6 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSix-pack (3-phase bridge)
Collector-emitter voltage (VCES)700 V
Nominal collector current (IC nom)400 A
PackageHybridPACK DC6
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS400R07A3E3_H6 (reply within 24 hours)
