FS3L40R07W2H5F_B70 Infineon - IGBT Module

Also written as: FS3L40R07W2H5F-B70

Category: IGBT Modules

Specifications: 650V, 40A

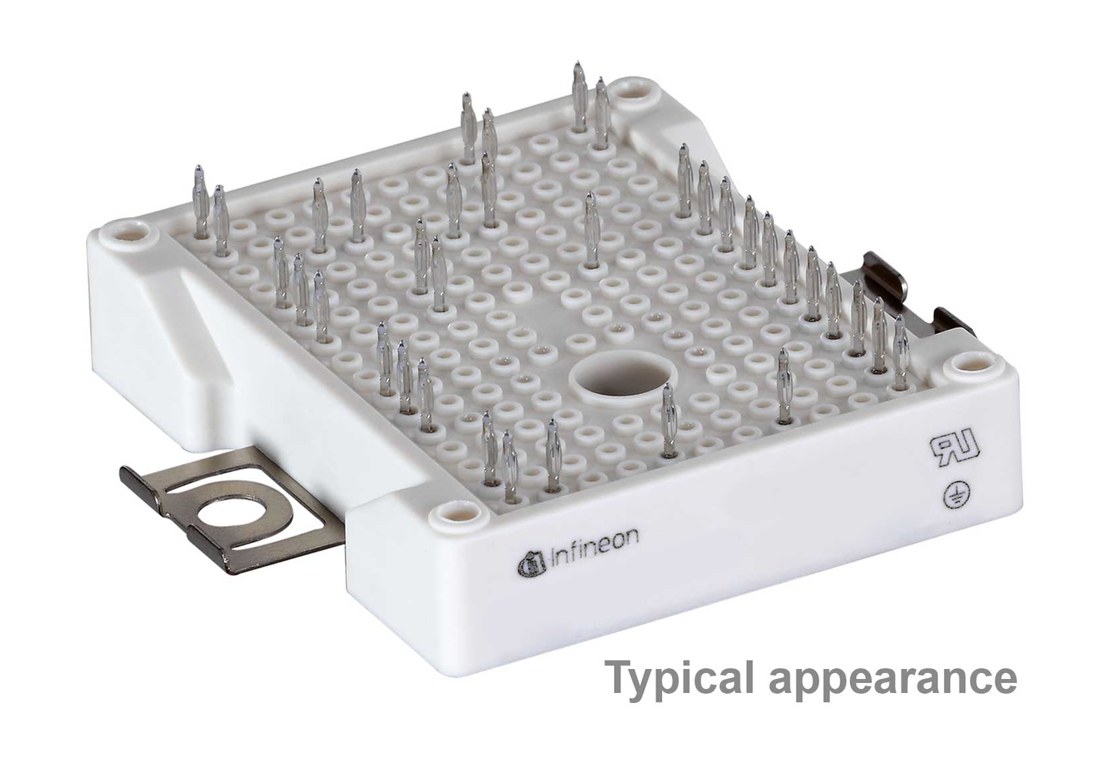

FS3L40R07W2H5F_B70 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS3L40R07W2H5F_B70 Description

FS3L40R07W2H5F_B70 is a 650 V / 40 A 3-level six-pack IGBT module from Infineon Technologies. Typical applications: three-level applications, UPS systems, Solar applications, Motor drives.

USComponent supplies FS3L40R07W2H5F_B70 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • CoolSiCTM Schottky diode gen 5
  • Low switching losses
  • Increased blocking voltage capability up to 650 V
  • Rugged mounting due to integrated mounting clamps
  • AlN substrate with low thermal resistance

Target Applications

Infineon FS3L40R07W2H5F_B70 is used for Three-level applications, UPS systems, Solar applications, Motor drives.

Key Specifications

FS3L40R07W2H5F_B70 is a 650 V / 40 A 3-level six-pack IGBT module from Infineon Technologies (EasyPACK 2B package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level six-pack
Collector-emitter voltage (VCES)650 V
Nominal collector current (IC nom)40 A
PackageEasyPACK 2B
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS3L40R07W2H5F_B70 (reply within 24 hours)
