FP15R12W1T3Infineon - IGBT MODULE

FP15R12W1T3 Description

The Infineon Technologies FP15R12W1T3 is an IGBT module rated at 1200 V and 28 A, available from USComponent. Components of this type are commonly used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the FP15R12W1T3.

Summary of Features

Target Applications

Infineon FP15R12W1T3 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FP15R12W1T3 is a 1,200 V, 15 A IGBT module, pIM (converter + brake + inverter) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	PIM (converter + brake + inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	15 A
Datasheet	Available on this page (PDF)

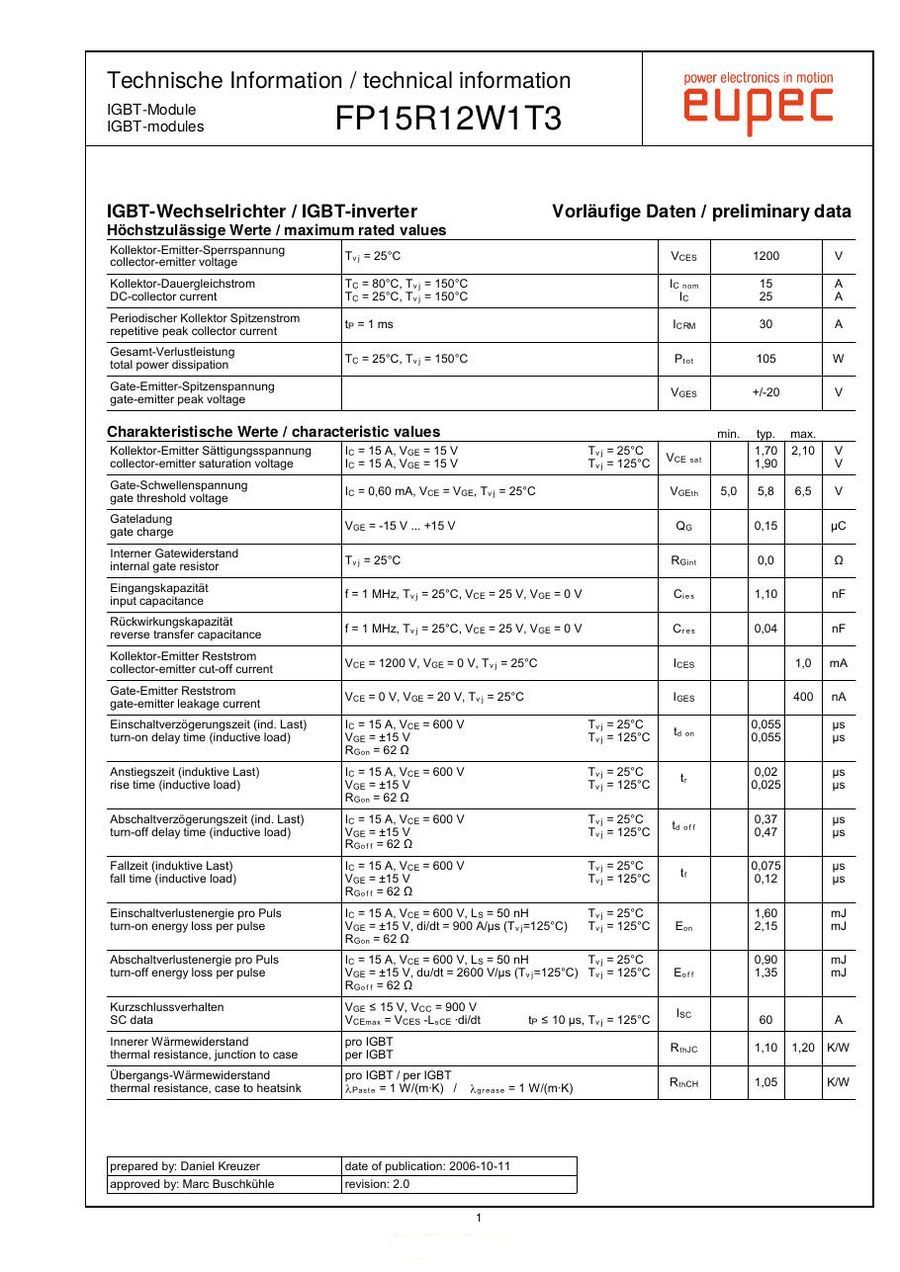

Download FP15R12W1T3 Datasheet

FP15R12W1T3 PDF Datasheet
