FP15R12KE3EGN Infineon - IGBT Module

FP15R12KE3EGN Description

Infineon Technologies makes the FP15R12KE3EGN, an IGBT module. It is built with a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

Looking for a replacement FP15R12KE3EGN? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Infineon FP15R12KE3EGN is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FP15R12KE3EGN is a 1,200 V, 15 A IGBT module, pIM (converter + brake + inverter) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	PIM (converter + brake + inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	15 A

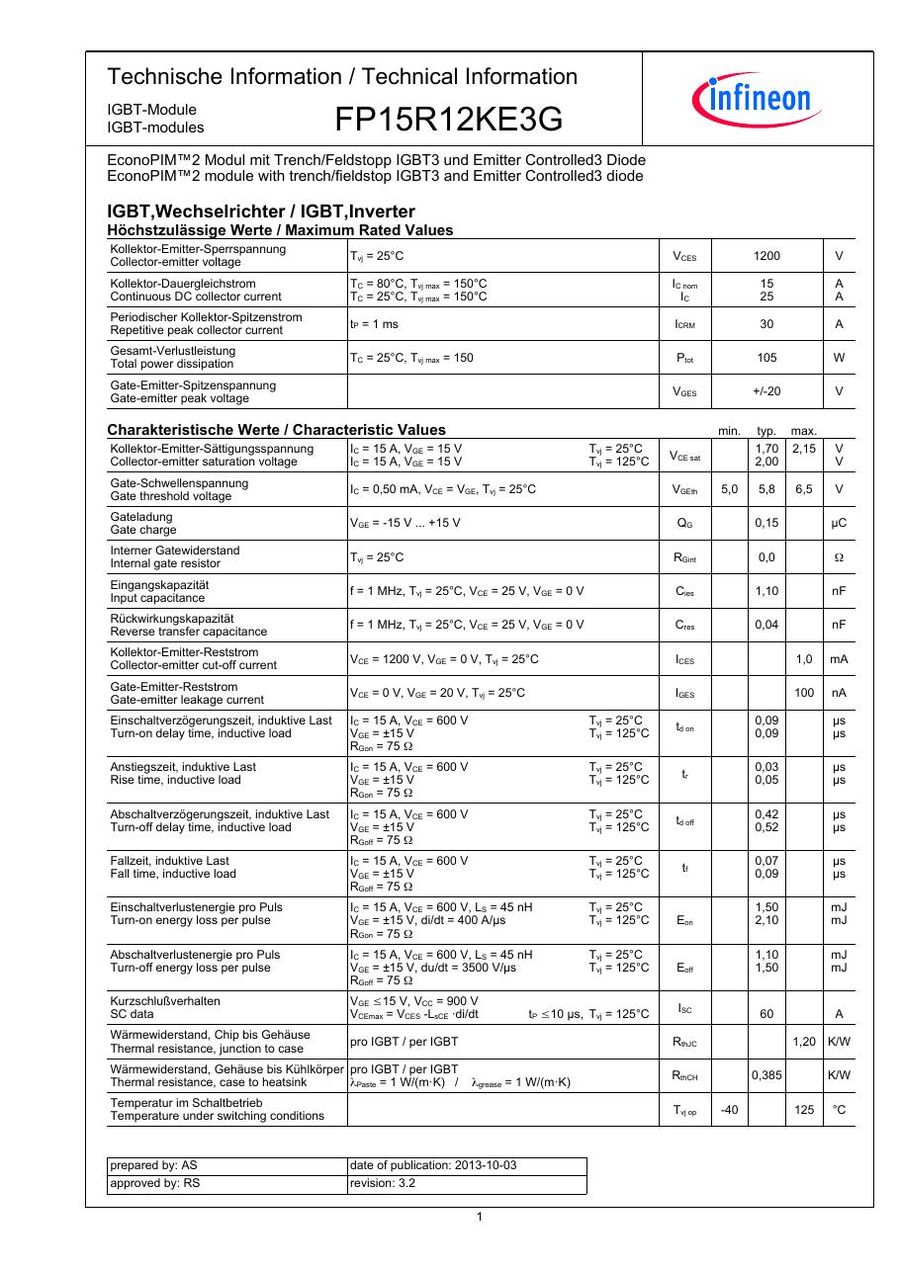

Datasheet	Available on this page (PDF)
