FP40R12KE3 Infineon - IGBT

FP40R12KE3 Description

FP40R12KE3 is a 1200 V, 40 A IGBT module made by Infineon Technologies. The module contains a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the FP40R12KE3; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Infineon FP40R12KE3 is used for drives, health Care, Induction heating, Aircon.

Key Specifications

FP40R12KE3 is a 1,200 V, 40 A IGBT module, pIM (converter + brake + inverter) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	PIM (converter + brake + inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	40 A

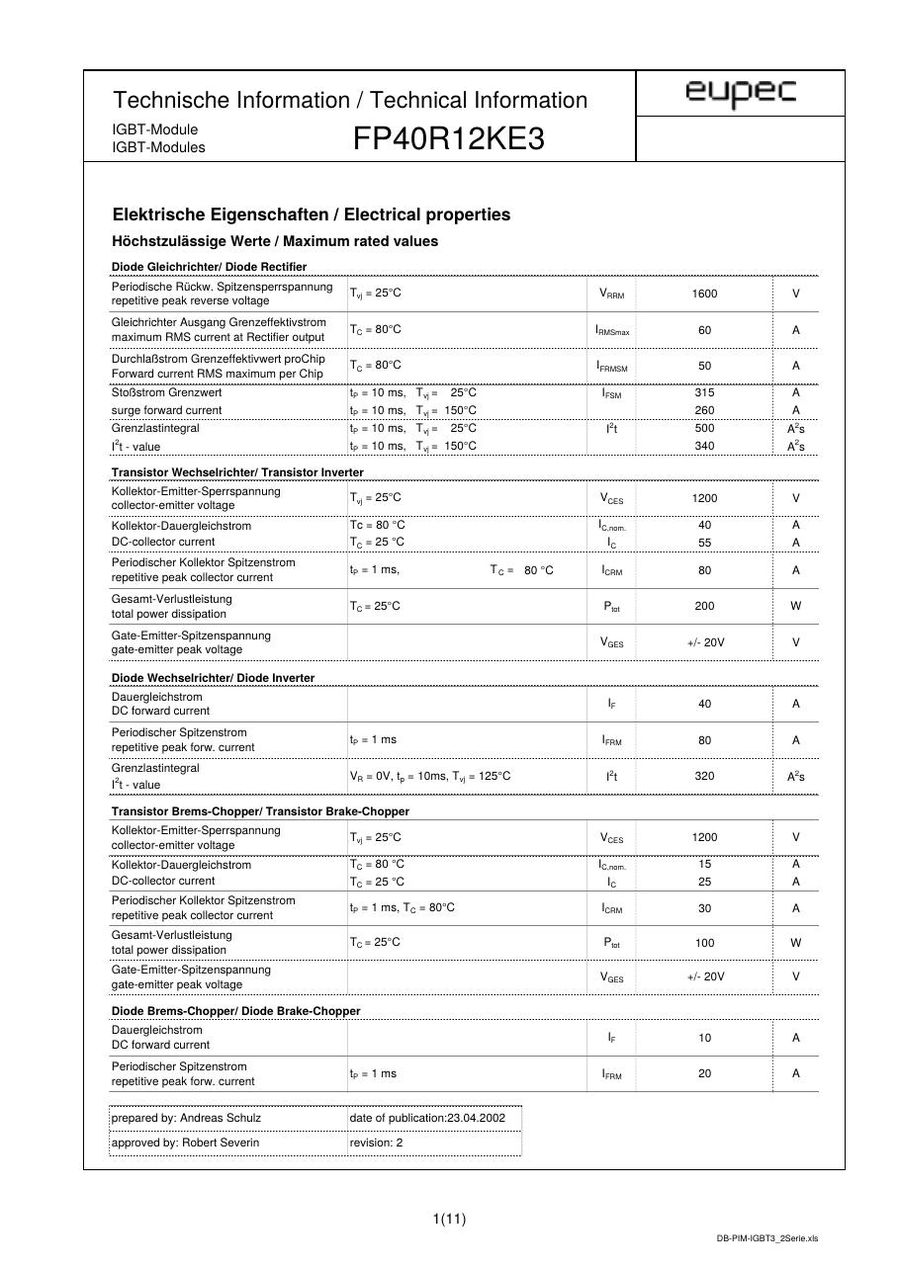

Datasheet	Available on this page (PDF)
