FP75R17N3E4_B20 Infineon - IGBT Module

FP75R17N3E4_B20 Description

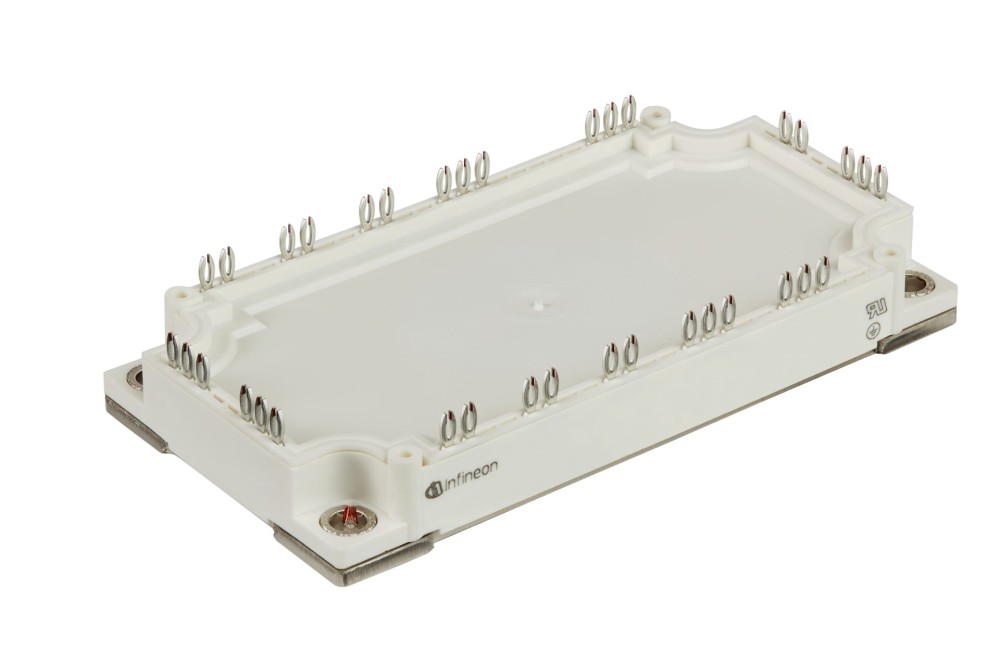

FP75R17N3E4_B20 is an Infineon 1,700 V / 75 A PIM (converter-brake-inverter) IGBT module, EconoPIM 3.

USComponent supplies FP75R17N3E4_B20 and other Infineon power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FP75R17N3E4_B20 is used for Motor drives.

Key Specifications

FP75R17N3E4_B20 is an Infineon 1,700 V / 75 A PIM (converter-brake-inverter) IGBT module, EconoPIM 3. Key data from the Infineon datasheet.

Parameter	Value
Product type	IGBT module
Configuration	PIM (converter-brake-inverter) IGBT module
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC nom)	75 A
Technology	Trench/Fieldstop IGBT4 with emitter controlled diode
Package	EconoPIM 3 (AG-ECONO3B)
Feature	2.2 kV rectifier diodes
Feature	Integrated NTC temperature sensor
Feature	Solder contact technology, isolated base plate

Status: end of life announced by Infineon (Product Discontinuation PD_26_110_01, issued 2026-07-02: last order date 2027-01-15, last delivery date 2027-07-15). Infineon offers a replacement on request only. USComponent can source FP75R17N3E4_B20 and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for FP75R17N3E4_B20 (reply within 24 hours)
