FF2000R17T2P8 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1700V, 2000A

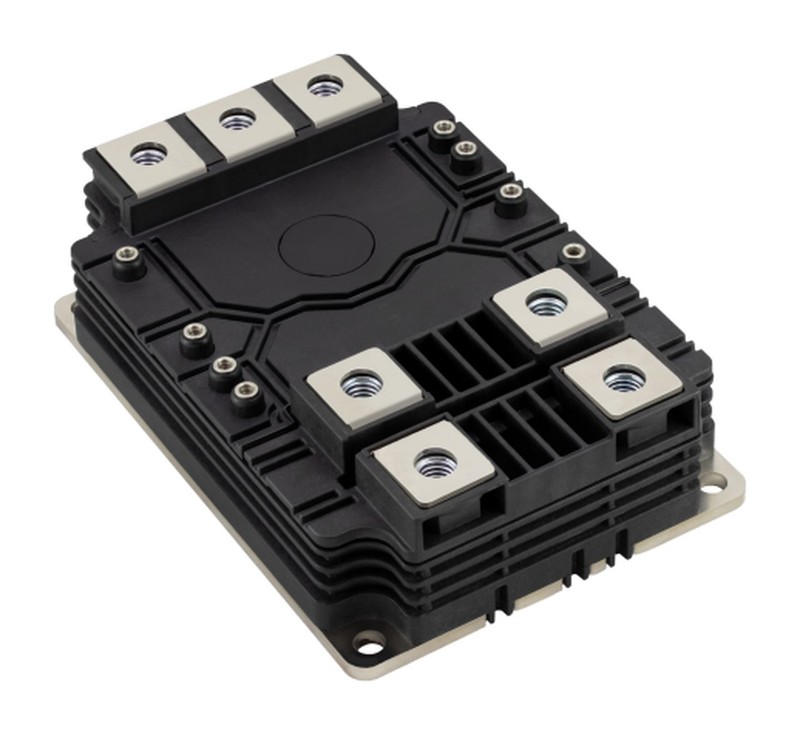

FF2000R17T2P8 Infineon IGBT Module

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FF2000R17T2P8 Description

FF2000R17T2P8 is a 1,700 V / 2,000 A XHP™ 2 half-bridge IGBT module from Infineon Technologies (TRENCHSTOP™ IGBT8 with emitter controlled 8 diode). Datasheet ratings: ICRM 4,000 A, VCE(sat) 1.65 V typ. at 2,000 A, 4.0 kV isolation, Tvj op up to 175 °C. Potential applications: High-power converters, Wind turbines, Motor drives, Traction. Infineon lists it as active and preferred.

USComponent supplies FF2000R17T2P8 and other Infineon / eupec IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

FF2000R17T2P8 is a 1,700 V / 2,000 A XHP™ 2 half-bridge IGBT module from Infineon Technologies (TRENCHSTOP™ IGBT8 with emitter controlled 8 diode).

  • VCES = 1700 V, IC nom = 2000 A / ICRM = 4000 A
  • Tvj,op = 175 °C
  • Low switching losses
  • High current density
  • Low VCE,sat
  • Low inductive design
  • High creepage and clearance distances
  • High power and thermal cycling capability
  • High power density
  • Package with CTI > 600

Target Applications

Infineon FF2000R17T2P8 is used for High-power converters, Wind turbines, Motor drives and Traction.

Key Specifications

FF2000R17T2P8 is a 1,700 V / 2,000 A XHP™ 2 half-bridge IGBT module from Infineon Technologies (TRENCHSTOP™ IGBT8 with emitter controlled 8 diode). Source: Infineon datasheet (2026-04-15).

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
HousingXHP™ 2
ConfigurationHalf-bridge (dual)
TechnologyTRENCHSTOP™ IGBT8 with emitter controlled 8 diode, NTC
Collector-emitter voltage (VCES)1,700 V
Nominal collector current (IC nom)2,000 A
Continuous DC collector current2,000 A (TC = 95 °C, Tvj max = 175 °C)
Repetitive peak collector current (ICRM)4,000 A
VCE(sat), IC = 2,000 A, VGE = 15 V, Tvj = 25 °C1.65 V typ. / 1.85 V max.
Gate threshold voltage VGEth (Tvj = 25 °C)5.15 / 5.80 / 6.45 V (min. / typ. / max.)
Diode forward voltage VF, IF = 2,000 A, Tvj = 25 °C1.95 V typ. / 2.12 V max.
Temperature under switching conditions (Tvj op)-40 to +175 °C
Storage temperature (Tstg)-40 to +150 °C
Isolation test voltage (VISOL, RMS, 50 Hz, 1 min)4.0 kV
Mounting torque, module (M6)3 - 6 N·m
Terminal connection torque (M3)0.9 - 1.1 N·m
Terminal connection torque (M8)8 - 10 N·m
Weight1,020 g
Dimensions140 x 99.8 mm
Ordering code (OPN)FF2000R17T2P8BPSA1
Status (Infineon)Active and preferred
Applications (datasheet)High-power converters, Wind turbines, Motor drives, Traction
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FF2000R17T2P8 (reply within 24 hours)
