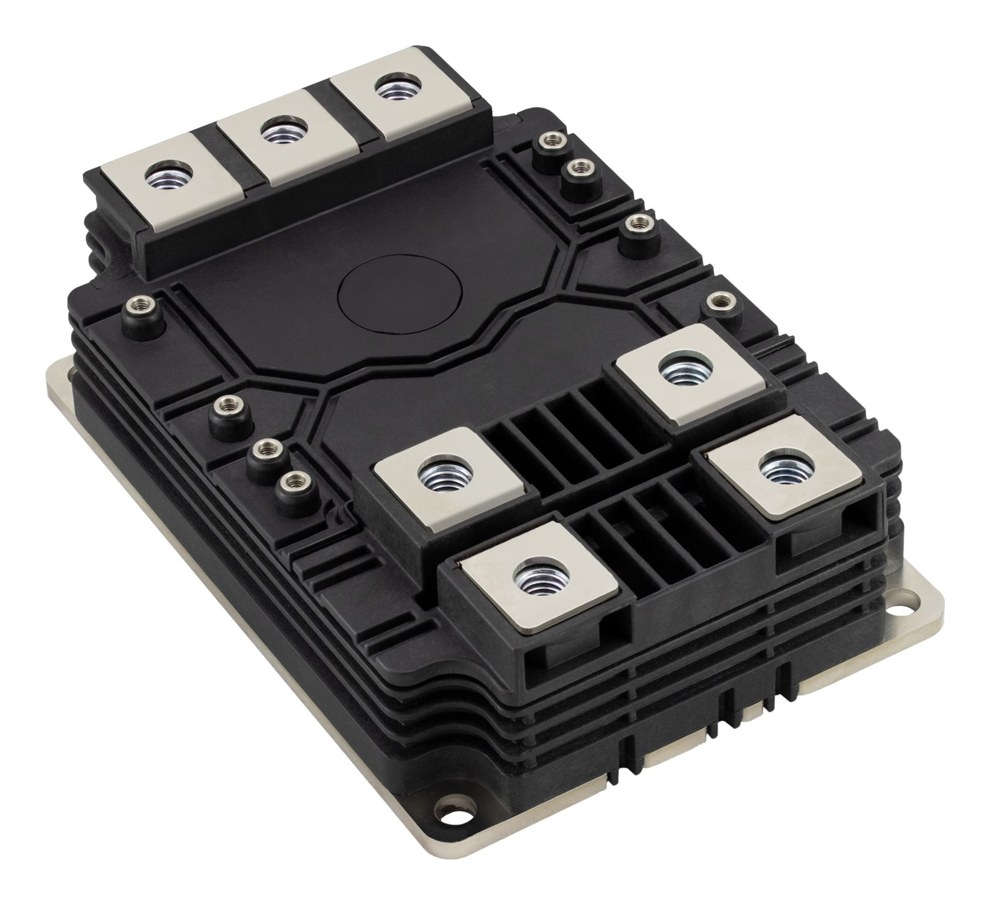

FF1800XTR17T2P5 Infineon - IGBT Module

FF1800XTR17T2P5 Description

FF1800XTR17T2P5 is a 1700 V, 1800 A Infineon XHP 2 IGBT module (dual), used for wind and solar converters, traction and high-power drives.

USComponent supplies FF1800XTR17T2P5 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FF1800XTR17T2P5 is used for motor drives, traction drives, wind turbines and high-power converters.

Key Specifications

FF1800XTR17T2P5 is a 1,700 V, 1,800 A Infineon IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (half-bridge)
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC nom)	1,800 A
Technology	IGBT5 (.XT interconnect technology), Emitter Controlled 5 diode
Package	XHP 2
