FD1600-1200R17HP4-K-B2 Infineon - IGBT Module

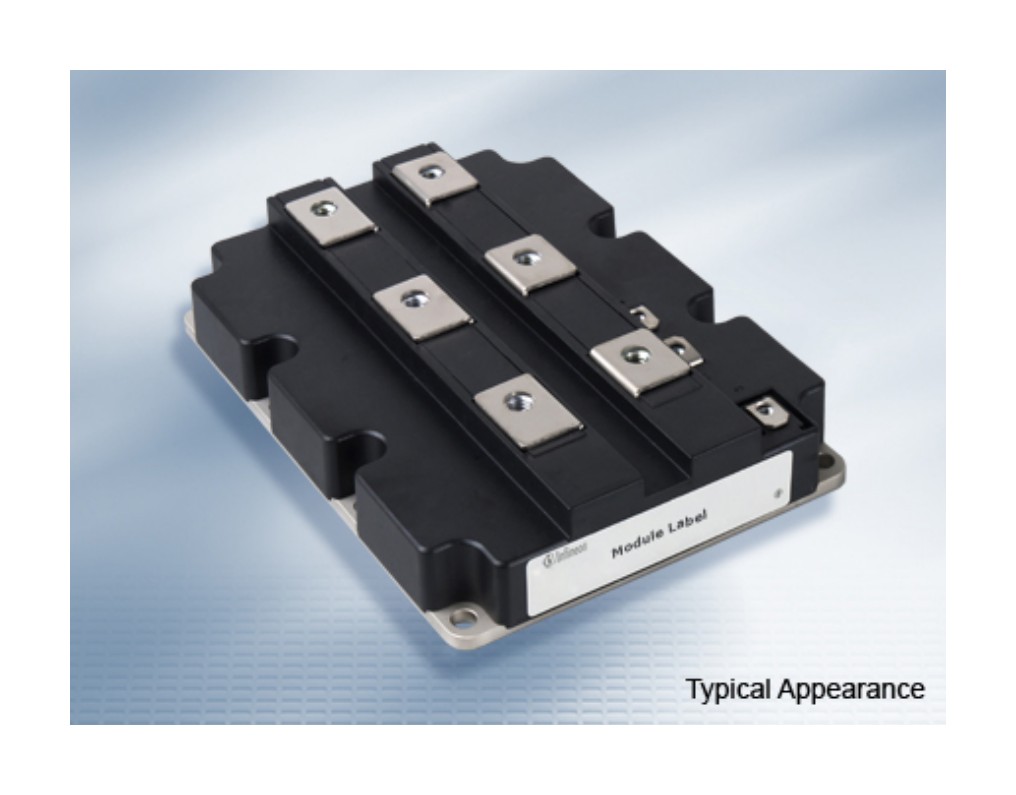

FD1600-1200R17HP4-K-B2 Description

FD1600-1200R17HP4-K-B2 is a 1,700 V / 1,600 A IHM B chopper IGBT module from Infineon Technologies (IGBT4 (P4)). Datasheet ratings: ICRM 3,200 A, VCE(sat) 1.90 V typ. at 1,600 A, 4.0 kV isolation, Tvj op up to 150 °C. Potential applications: Chopper applications, High power converters, Traction drives, Wind turbines. Infineon lists it as active and preferred.

USComponent supplies FD1600-1200R17HP4-K-B2 and other Infineon / eupec IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FD1600-1200R17HP4-K-B2 is used for Chopper applications, High power converters, Traction drives and Wind turbines.

Key Specifications

FD1600-1200R17HP4-K-B2 is a 1,700 V / 1,600 A IHM B chopper IGBT module from Infineon Technologies (IGBT4 (P4)). Source: Infineon datasheet (2016-01-21).

Parameter	Value
Manufacturer	Infineon Technologies
Product type	IGBT module
Housing	IHM B
Configuration	Chopper (IGBT + brake-chopper diode, with reverse diode)
Technology	IGBT4 (P4)
Collector-emitter voltage (VCES)	1,700 V
Continuous DC collector current (IC nom)	1,600 A (TC = 100 °C, Tvj max = 175 °C)
Repetitive peak collector current (ICRM)	3,200 A
Total power dissipation (Ptot, TC = 25 °C)	10.5 kW
VCE(sat), IC = 1,600 A, VGE = 15 V, Tvj = 25 °C	1.90 V typ. / 2.25 V max.
Gate threshold voltage VGEth (Tvj = 25 °C)	5.20 / 5.80 / 6.40 V (min. / typ. / max.)
Brake-chopper diode VF, IF = 1,600 A, Tvj = 25 °C	1.65 V typ. / 2.10 V max.
Reverse diode VF, IF = 1,200 A, Tvj = 25 °C	1.80 V typ. / 2.20 V max.
Temperature under switching conditions (Tvj op)	-40 to +150 °C
Storage temperature (Tstg)	-40 to +150 °C
Isolation test voltage (VISOL, RMS, 50 Hz, 1 min)	4.0 kV
Mounting torque, module (M6)	4.25 - 5.75 N·m
Terminal connection torque (M4)	1.8 - 2.1 N·m
Terminal connection torque (M8)	8.0 - 10 N·m
Weight	1,200 g
Dimensions	140 x 190 mm
Ordering code (OPN)	FD16001200R17HP4KB2BOSA1
Status (Infineon)	Active and preferred
Applications (datasheet)	Chopper applications, High power converters, Traction drives, Wind turbines
Datasheet	Available on this page (PDF)
