FD1600-1200R17HP4-B2 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1700V, 1600A

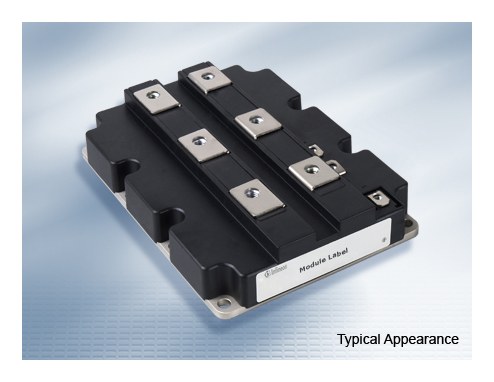

FD1600-1200R17HP4-B2 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FD1600-1200R17HP4-B2 Description

FD1600-1200R17HP4-B2 is a 1700 V / 1600 A chopper (IGBT + diode) IGBT module from Infineon Technologies. Typical applications: chopper applications, High power converters, Traction drives, Wind turbines.

USComponent supplies FD1600-1200R17HP4-B2 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Extended operating temperature Tvj op
  • Low Veesat
  • AISiC base plate for increased thermal cycling
  • Lastwechselfestigkeit capability
  • High creepage and clearance distances
  • High power and thermal cycling capability
  • High power density
  • IHM B housing

Target Applications

Infineon FD1600-1200R17HP4-B2 is used for Chopper applications, High power converters, Traction drives, Wind turbines.

Key Specifications

FD1600-1200R17HP4-B2 is a 1700 V / 1600 A chopper (IGBT + diode) IGBT module from Infineon Technologies (IHM-B package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationChopper (IGBT + diode)
Collector-emitter voltage (VCES)1700 V
Nominal collector current (IC nom)1600 A
PackageIHM-B
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FD1600-1200R17HP4-B2 (reply within 24 hours)
