FD1000R33HL3_K Infineon - IGBT Module

Replacement for: Infineon recommends FD1000R33HL3_K as the replacement for FD800R33KF2C-K. We also supply the original part.

Category: IGBT Modules

Specifications: 3300V, 1000A

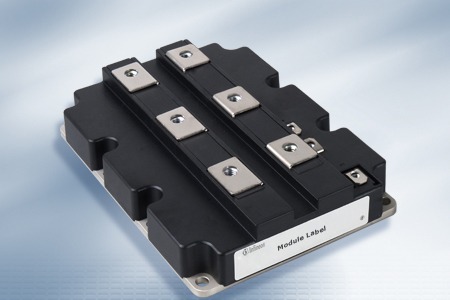

FD1000R33HL3_K Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FD1000R33HL3_K Description

FD1000R33HL3_K is a 3300 V, 1000 A Infineon igbt module (chopper (igbt + diode)), used for chopper applications, medium-voltage converters, motor drives, traction drives, UPS, wind turbines.

USComponent supplies FD1000R33HL3_K and other Infineon / Eupec power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 3,300 V / 1,000 A chopper (igbt + diode)
  • Trench/Fieldstop IGBT3, Emitter Controlled 3 diode
  • IHM-B
  • ICRM 2,000 A
  • AlSiC base plate for increased thermal cycling capability
  • High DC stability and short-circuit capability
  • Housing with CTI > 600
  • Tvj op 150 °C

Target Applications

Infineon FD1000R33HL3_K is used for chopper applications, medium voltage converters, motor drives, traction drives, UPS systems and wind turbines.

Key Specifications

FD1000R33HL3_K is a 3,300 V, 1,000 A Infineon igbt module. Source: manufacturer datasheet.

ParameterValue
Product typeIGBT module
ConfigurationChopper (IGBT + diode)
Collector-emitter voltage (VCES)3,300 V
Collector current (IC nom)1,000 A
TechnologyTrench/Fieldstop IGBT3, Emitter Controlled 3 diode
PackageIHM-B

Technical document (PDF)  |  Request a quote for FD1000R33HL3_K (reply within 24 hours)
