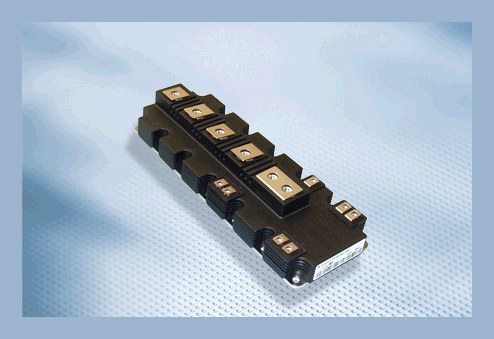

FD1000R17IE4D_B2 Infineon - IGBT Module

FD1000R17IE4D_B2 Description

FD1000R17IE4D_B2 is a 1700 V, 1000 A Infineon PrimePACK 3 chopper IGBT module (IGBT4), used for 3-level converters, chopper applications, traction drives and wind turbines.

USComponent supplies FD1000R17IE4D_B2 and other Infineon IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FD1000R17IE4D_B2 is used for 3-level converters, chopper applications, traction drives and wind turbines.

Key Specifications

FD1000R17IE4D_B2 is a 1,700 V, 1,000 A Infineon PrimePACK 3 IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Chopper (diode on high side, IGBT on low side)
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC nom)	1,000 A
Technology	Trench/Fieldstop IGBT4 with enlarged Emitter Controlled diode
Package	PrimePACK 3
Max. operating junction temperature	150 °C

Technical document (PDF)  |  Request a quote for FD1000R17IE4D_B2 (reply within 24 hours)
